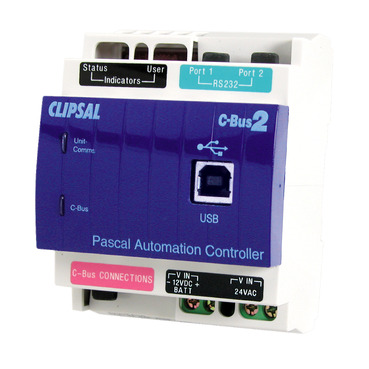

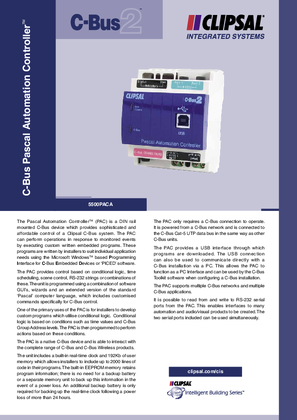

C-Bus Control and Management System Pascal Automation Controller

Item Number: 5500PACA

Contact your Wholesaler for pricing

Where To Buy

Datasheet

PDF datasheet

For 5500PACA

Download

Barcode

Qty UoM EAN Colour
1 9311554622657 -
10 19311554622654 -

Specifications

Physical

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • CAD Files and Packs

  • Other technical guide

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Operating Manuals

  • Specification Guide

  • Application Notes

  • Declaration of Conformity

  • Software - Release

  • Software - Data Library

  • Page 2  /  49
  • Page 3  /  49
  • Page 4  /  49
  • Page 5  /  49
  • Page 6  /  49
  • Page 7  /  49
  • Page 8  /  49
  • Page 9  /  49
  • Page 10  /  49
  • Page 11  /  49
  • Page 12  /  49
  • Page 13  /  49
  • Page 14  /  49
  • Page 15  /  49
  • Page 16  /  49
  • Page 17  /  49
  • Page 18  /  49
  • Page 19  /  49
  • Page 20  /  49
  • Page 21  /  49
  • Page 22  /  49
  • Page 23  /  49
  • Page 24  /  49
  • Page 25  /  49
  • Page 26  /  49
  • Page 27  /  49
  • Page 28  /  49
  • Page 29  /  49
  • Page 30  /  49
  • Page 31  /  49
  • Page 32  /  49
  • Page 33  /  49
  • Page 34  /  49
  • Page 35  /  49
  • Page 36  /  49
  • Page 37  /  49
  • Page 38  /  49
  • Page 39  /  49
  • Page 40  /  49
  • Page 41  /  49
  • Page 42  /  49
  • Page 43  /  49
  • Page 44  /  49
  • Page 45  /  49
  • Page 46  /  49
  • Page 47  /  49
  • Page 48  /  49
  • Page 49  /  49

Frequently Asked Questions

Which USB-RS232 adaptor do I need for C-Bus?

Hide Show
Issue:
User is trying to connect PC Computer to Clipsal C-Bus system through RS232 PC Interface PCI device.  The user cannot establish a connection or open the network.

Product Line:
Clipsal C-bus 5500PC Serial Interface

Environment:
C-Bus Toolkit

Cause:
Most PC's today do not have built in RS-232 ports.  The PC must use a USB to RS-232 adaptor device or cable.    It has been our experience that some of these USB to RS232 adaptors work better than others.  The reasons for these differences is typically driver related.

Also, it has been our experience that although a USB to serial adaptor may be known to work on one piece of equipment, it may not work on the C-Bus PCI.   For example, we have seen some adaptors successfully connect to a Powerlink G3 controller and then fail to connect to a C-Bus RS-232 PCI.

Resolution:
It is suggested to try a USB-to-serial adaptor that is known to work with C-Bus these will need to contain the FTDI Chip set.
Cheaper brands on the market do not use this chip and will not work correctly with the Serial Library used by C-Bus Software.

Google Search: USB-RS232 FTDI

This will show results from suppliers such as Element14, RS Components etc, we've had success with these adaptors in the past.


An alternative resolution would be to use a different device to access the C-Bus Network such as any of the following:
USB PC Interface 5500PCU
Pascal Automation Controller 5500PACA
Ethernet Network Interface 5500CN2
Mark II Black and White Touch Screens

Clipsal Cbus RS232 PC Interface (PCI) will not connect to PC (USA model)

Hide Show
Issue:
User is trying to connect PC Computer to Clipsal C-Bus system through RS232 PC Interface PCI device.  The user cannot establish a connection or open the network.

Product Line:
Clipsal C-bus (SLC series US model)

Environment:
C-Bus Toolkit

Cause:
Most PC's today do not have built in RS-232 ports.  The PC must use a USB to RS-232 adaptor device or cable.    It has been our experience that some of these USB to RS232 adaptors work better than others.  The reasons for these differences is typically driver related.

Also, it has been our experience that although a USB to serial adaptor may be known to work on one piece of equipment, it may not work on the C-Bus PCI.   For example, we have seen some adaptors successfully connect to a Powerlink G3 controller and then fail to connect to a C-Bus RS-232 PCI.

Resolution:
It is suggested to try a USB-to-serial adaptor that is known to work with C-Bus.  Below is a list of adaptors that we had successful experiences with C-Bus RS-232 PCI device.

Date of Functional Verification:  16May2014
Manufacturer:  Gigaware
Product Name:  6ft USB-A to Serial Cable
Product Model Number:  2603487
Purchase Date:  15May2014 from RadioShack, $25
Computer used with:   HP Laptop running Windows 7 64-bit


An alternative resolution would be to use a different device to access the C-Bus Network such as any of the following:
USB PC Interface SLC5500PCU
Pascal Automation Controller SLC5500PACA
Ethernet Network Interface SLC5500CN2
Mark II Black and White Touch Screens
