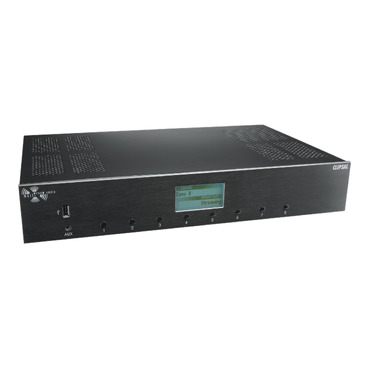

C-Bus Control and Management System Multi-Room Audio Matrix Switcher 4 Stereo, 8 Digital Audio Zone Outputs
Item Number: 560884/2
Specifications
Design
| Range of product | C-Bus |
|---|---|
| Range | C-Bus |
| Product brand | Clipsal |
| Product or component type | audio matrix switcher |
| Device application | media device support |
Physical
| [ue] rated operational voltage | 100...240 V AC |
|---|---|
| Connector type | RCA |
| Width | 436 mm |
| Height | 80 mm |
| Depth | 288 mm |
| Net weight | 6 kg |
| Eu rohs directive | Not Applicable/Out of Scope |
