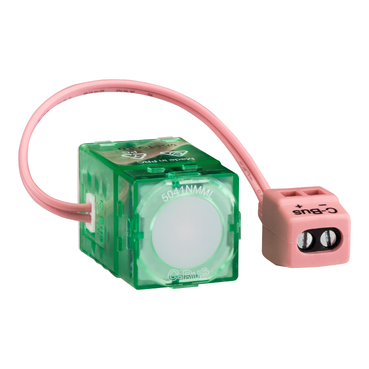

C-Bus Master Module 40 Series

1 PCE 0

Width22.8 mm

Height22.8 mm

Depth36 mm

See full specifications

Qty	UoM	EAN	Colour
			-
			-
			-

Qty	UoM	EAN	Colour
1	PCE	9311554806088	-

Specifications

Range	C-Bus
Product brand	Clipsal
Product or component type	push-button interface
Device application	control

Range compatibility	C-Bus Iconic wall plate Pro Series wall plate
Dimmer control	255 possible levels
Device mounting	wall mounted by Series 40M grid
[ue] rated operational voltage	15...36 V DC
Local signalling	LED (red/blue) for status
Type of cable	twisted unshielded pairs cable category 5e
Communication network type	C-Bus
Control type	push-button
Depth	36 mm
Width	22.8 mm
Height	22.8 mm
Net weight	0.013 kg
Ambient air temperature for operation	0...45 °C
Relative humidity	10...95 % non-condensing
Product certifications	RCM
Standards	AS/NZS CISPR 15 AS/NZS CISPR 14-1 AS/NZS 60669.2.1
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2104025_V1
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material	plastic

Package 1 bare product quantity	1
Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Average percentage of recycled plastic content	0 %
Weee applicability	Finished product
Product name	Series 40M
Switch application	load switching dimming up/down control timer scene control bell switch shutter control fan speed control blind control
Input impedance	100 kOhm at 1-1 kHz
Isolation voltage	3.75 kV from C-Bus to mains
Method of access	master
Starting time	5 s
Module configuration	programmed with learn mode programmed with C-Bus software
Time delay range	1s...18h12m15s
Current consumption	18 mA
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.7 cm
Package 1 width	2.7 cm
Package 1 length	5 cm
Package 1 weight	55 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.3438341836734696
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00000709626275510204
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00000101226658163265
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	98.39245192307692
Carbon footprint of the use phase [b2, b3, b4, b6]	98 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00003619477040816327
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.3576835503807888
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
End of life manual availability	ENVEOLI2104025_V1
Take-back	No
Warranty (in months)	18

Documents & downloads

All
Product Brochures
End of Life Manual
Environmental Disclosure
Installation Instruction
Operating Manuals
Quick Start Guide
Declaration of Conformity
Declaration of Conformity (Sustainability)
Software - Release

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

C-Bus Master Module 40 Series

Item Number: 5041NMML

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

Product Brochures

End of Life Manual

Environmental Disclosure

Installation Instruction

Operating Manuals

Quick Start Guide

Declaration of Conformity

Declaration of Conformity (Sustainability)

Software - Release

998-20872742_SpaceLogic C-Bus Commercial Brochure

PRO SERIES - RANGE OVERVIEW BROCHURE

Saturn, Pure Glass - Beautifully crafted, 6314

One touch - blinding levels of control, 14804

C-Bus Cool levels of control, Ceiling Sweep Fan Control Relay, 22457

C-Bus, Measure, monitor and control, C-Bus Current Measurement Unit, 23021

Reflection, expression without words

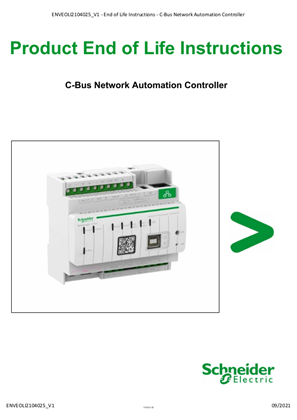

C-Bus, Network Automation Controller - Product End of Life Instructions

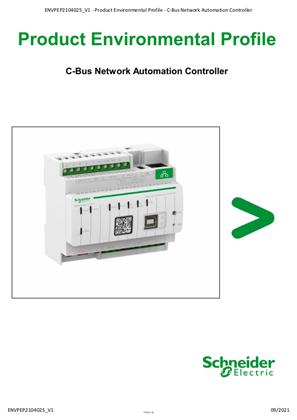

C-Bus, Network Automation Controller - Product Environmental Profile
