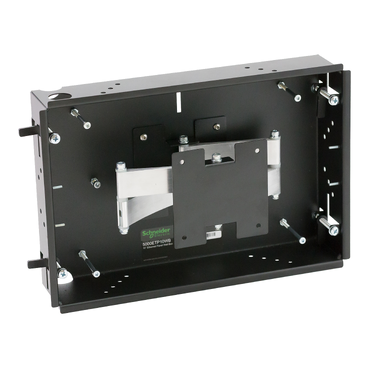

C-Bus Control and Management System Flush Mount Wall Box Suits 10” Ethernet Touch Panel Includes White Fascia.

Item Number: 5000ETP10WB

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width293 mm

Height196 mm

Depth63 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554794859	-
4	CAR	19311554794856	-

Specifications

Design

Range	C-Bus
Product or component type	wall box
Device application	mounting
Surface finish	powder coated

Physical

Range compatibility	C-Bus touch panel
Mounting support	solid wall cavity wall, thickness: 9-34 mm
Device mounting	flush
Height	196 mm
Width	293 mm
Depth	63 mm
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2408008
China rohs regulation	X
Eu rohs directive	Compliant By Exemption

Material

Material	body: mild steel 1.2 mm mounting arm: aluminium

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Mounting plate description	VESA
Shape	rectangular
Cable entry number	1 top
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.5 cm
Package 1 width	23.0 cm
Package 1 length	35.0 cm
Package 1 weight	2.25 kg
Unit type of package 2	CAR
Number of units in package 2	4
Package 2 height	38.0 cm
Package 2 width	24.5 cm
Package 2 length	43.5 cm
Package 2 weight	9.0 kg
Total lifecycle carbon footprint	595 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	488.0690689987846
Carbon footprint of the manufacturing phase [a1 to a3]	488 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	12.138521842745012
Carbon footprint of the distribution phase [a4]	12 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.012677517325211439
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	88.49195173716083
Carbon footprint of the use phase [b2, b3, b4, b6]	88 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	5.95221781814524
Carbon footprint of the end-of-life phase [c1 to c4]	6 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	594.6644379141609
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	3
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2408008_V1
Take-back	No
Warranty (in months)	18
