C-Bus Control and Management System Ethernet Touch Panel Price On Application

Item Number: 5000ETP10W

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Widthcover frame: 316 mm

Heightcover frame: 220 mm

Depthcover frame: 6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554794842	-
4	CAR	19311554794849	-

Specifications

Design

Range	C-Bus
Product or component type	touch panel
Device application	equipment monitoring and control

Physical

Provided equipment	1 mounting plate 1 cover frame 10 fixing screws 4 washer 1 screw 1 micro SD card securing plate 1 Ethernet cable securing plate
Supply	external power supply: 12 V DC, +/- 5 %, <1.5 A via PoE: - 15 W
Communication port protocol	Ethernet
Integrated connection type	Ethernet port USB port HDMI micro SD card port audio output
Connector type	power input
Device mounting	flush surface
Width	cover frame: 316 mm
Height	cover frame: 220 mm
Depth	cover frame: 6 mm
Ambient air temperature for operation	0...40 °C
Relative humidity	10...85 %
Standards	IEEE 802.3af
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2408008EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Weee exclusion rationale	Component not in scope – non independent function
Warranty duration(in months) bmecat	18
Display colour	262000 colours
Display size	10.1 inch
Cover frame colour tint	white
Maximum power consumption in w	6 W typical
Standby consumption	< 0.5 W
Display resolution	1280 x 800 pixels
Luminance	300 cd/m²
View angle horiz x vert	170° horizontal 170° vertical
Port ethernet	10/100BASE
Contrast ratio	800:1
Aspect ratio	16:9
Response time	30 ms typical
Mounting location	wall mounting
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.5 cm
Package 1 width	23.0 cm
Package 1 length	35.0 cm
Package 1 weight	1.55 kg
Unit type of package 2	CAR
Number of units in package 2	4
Package 2 height	38.0 cm
Package 2 width	24.5 cm
Package 2 length	43.5 cm
Package 2 weight	6.2 kg
Total lifecycle carbon footprint	437 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	336.22535864360714
Carbon footprint of the manufacturing phase [a1 to a3]	336 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	8.36209282500212
Carbon footprint of the distribution phase [a4]	8 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.008733400824034546
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	88.49195173716083
Carbon footprint of the use phase [b2, b3, b4, b6]	88 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	4.100416719166721
Carbon footprint of the end-of-life phase [c1 to c4]	4 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	437.18855332576084
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2408008EN
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Environmental Disclosure
End of Life Manual
Installation Instruction
Operating Manuals
System User Guide
Certificates (MSDS)
Declaration of Conformity (Sustainability)
Software - Release
Firmware

Important: Some software files may need a mySchneider or Club login to download.

ZIP

998-20872742_SpaceLogic C-Bus Commercial Brochure

VERSION

1.0

DATE

16 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 4.2 MB

PDF

Saturn, Pure Glass - Beautifully crafted, 6314

VERSION

1.0

DATE

24 Dec 2018

REVISION

1.0

DOWNLOAD (PDF) 417.1 KB

PDF

One touch - blinding levels of control, 14804

VERSION

1.0

DATE

19 Jun 2018

REVISION

1.0

DOWNLOAD (PDF) 369.7 KB

PDF

C-Bus Cool levels of control, Ceiling Sweep Fan Control Relay, 22457

VERSION

1.0

DATE

21 Dec 2016

REVISION

1.0

DOWNLOAD (PDF) 444.1 KB

PDF

C-Bus, Measure, monitor and control, C-Bus Current Measurement Unit, 23021

VERSION

1.0

DATE

21 Dec 2016

REVISION

1.0

DOWNLOAD (PDF) 1.9 MB

PDF

Reflection, expression without words

VERSION

1.0

DATE

21 Dec 2016

REVISION

1.0

DOWNLOAD (PDF) 620.3 KB

ZIP

C-BUS RELAY

VERSION

1.0

DATE

09 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 374.1 KB

ZIP

C-BUS RELAY

VERSION

1.0

DATE

09 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 239.7 KB

ZIP

C-Bus- Touch Panel-Instruction Sheet (EN)

VERSION

3.0

DATE

14 Oct 2025

REVISION

3.0

DOWNLOAD (ZIP) 24.8 MB

ZIP

C-Bus- Wall Box-Installation Guide (EN)

VERSION

2.0

DATE

02 Aug 2022

REVISION

2.0

DOWNLOAD (ZIP) 455.6 KB

ZIP

C-Bus C-Gate 3 Linux Release Notes V3.7.0

VERSION

3.0

DATE

05 Mar 2026

REVISION

3.0

DOWNLOAD (ZIP) 4.1 MB

ZIP

C-Bus C-Gate 3 Windows Installer, Release Notes V3.7.0

VERSION

2.0

DATE

05 Mar 2026

REVISION

2.0

DOWNLOAD (ZIP) 4.1 MB

ZIP

C-Bus Home Gate Release Notes V4.15.1

VERSION

1.0

DATE

18 Jan 2024

REVISION

1.0

DOWNLOAD (ZIP) 839.1 KB

ZIP

C-Bus Home Gate Release Notes V4.15.0

VERSION

1.0

DATE

30 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 234.9 KB

ZIP

C-Bus C-Gate 2 Linux Package Release Notes V2.11.11

VERSION

1.0

DATE

30 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 261.7 KB

ZIP

C-Bus C-Gate 2 Windows Installer Release Notes V2.11.11

VERSION

1.0

DATE

30 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 261.7 KB

ZIP

C-Bus- Touch Panel-Installation Guide (EN)

VERSION

2.0

DATE

29 Sep 2023

REVISION

2.0

DOWNLOAD (ZIP) 7.2 MB

ZIP

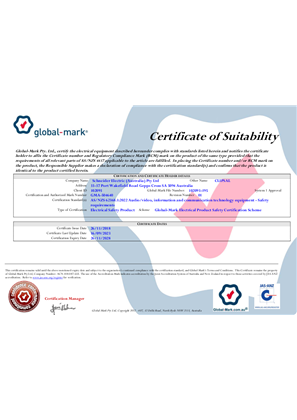

Clipsal, 5000ETP10W touch panel, Certificate, RCM, Global Mark Pty LTD
