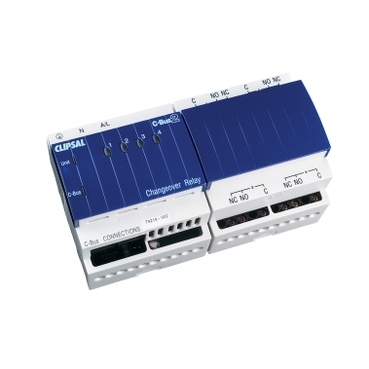

C-Bus Control and Management System, DIN Rail Mounted, Changeover Relay, 4 Channel, 8 Modules, 250V, 200mA

Home ProductsSmart Home SolutionsC-BusDIN Rail Mounted, Changeover Relay, 4 Channel, 8 Modules, 250V, 200mA

C-Bus Control and Management System, DIN Rail Mounted, Changeover Relay, 4 Channel, 8 Modules, 250V, 200mA

Item Number: L5504RVFC

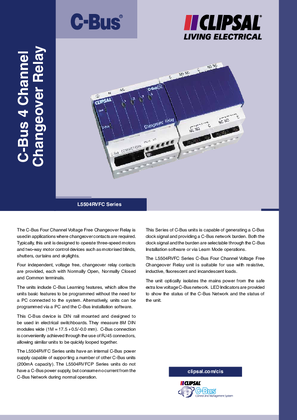

Datasheet

Product Dimensions

Width icon

Width144 mm

Height icon

Height85 mm

Depth icon

Depth65 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

C-Bus

Range

C-Bus

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Connector type

screw terminals

Width

144 mm

Height

85 mm

Depth

65 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP111268EN

Circularity profile

ENVEOLI111254EN

Material

Device composition

socket-outlet

Others

Package 1 bare product quantity

1

[us] rated supply voltage

15...36 V DC

Network type

AC/DC

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.9 cm

Package 1 width

11.2 cm

Package 1 length

15.7 cm

Package 1 weight

438.0 g

Unit type of package 2

CAR

Number of units in package 2

8

Package 2 height

22.5 cm

Package 2 width

22.5 cm

Package 2 length

32.7 cm

Package 2 weight

4.35 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Other technical guide

  • Environmental Disclosure

  • End of Life Manual

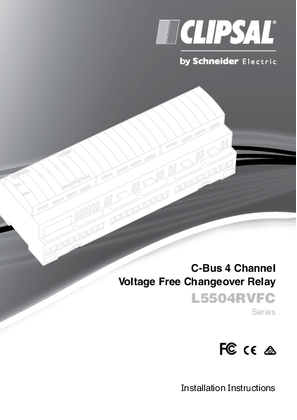

  • Installation Instruction
