C-Bus Control and Management System Dimmer Module 2 Channel, Leading Edge, 250V, 10A
Item Number: L5102D10
Colour ()
- 1 PCE 0

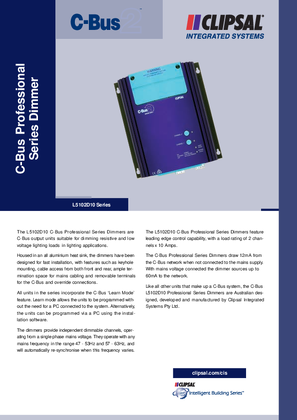

Datasheet
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| - | |||
| - | |||
| - |
Barcode
| Qty | UoM | EAN | Colour |
|---|---|---|---|
| 1 | PCE | 9311554339074 | - |
| 4 | CAR | 19311554339071 | - |
| 5 | CRT | 9311554339197 | - |
Specifications
Design
| Range | C-Bus |
|---|---|
| Product brand | Clipsal |
| Product or component type | dimmer |
| Device application | control |
Physical
| Device presentation | basic element |
|---|---|
| Load type | inductive |
| Local signalling | LED |
| Number of channels | 2 |
| Mounting support | wall |
| Ip degree of protection | IP20 |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1112068EN |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
Others
| Legacy weee scope | In |
|---|---|
| Package 1 bare product quantity | 1 |
| At least in Europe | |
| Warranty duration(in months) bmecat | 18 |
| Weee label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Power consumption in va | 2400 VA |
| Network frequency | 47...63 Hz |
| Nominal output power | 2300 W |
| Size | base: 240 x 202 x 75 mm |
| Unit type of package 1 | PCE |
| Number of units in package 1 | 1 |
| Package 1 height | 8 cm |
| Package 1 width | 23.4 cm |
| Package 1 length | 24.5 cm |
| Package 1 weight | 4.4 kg |
| Sustainable packaging | No |
| China rohs label | 1 |
| End of life manual availability | ENVEOLI111254EN |
| Weee label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty (in months) | 18 |
