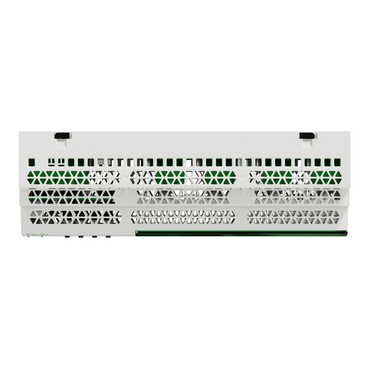

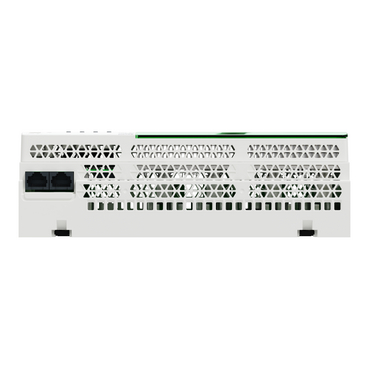

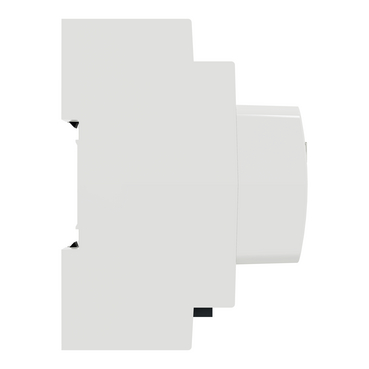

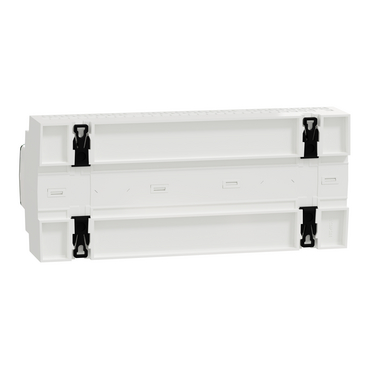

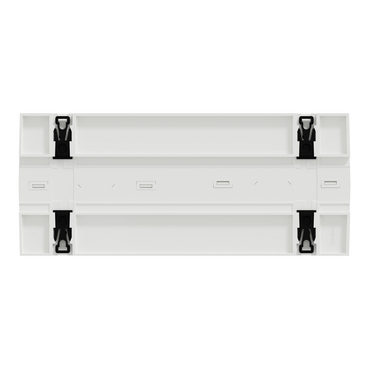

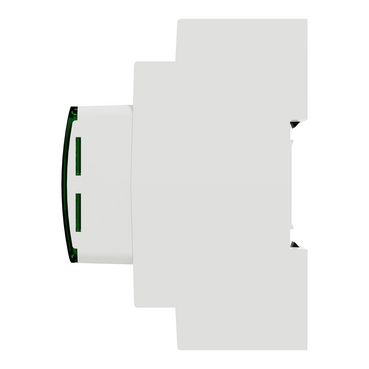

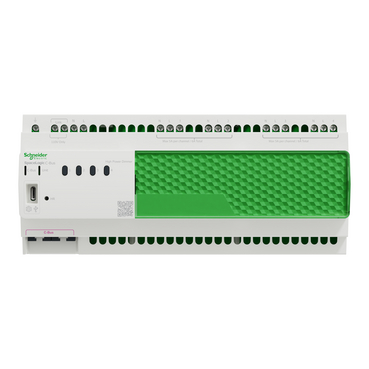

SpaceLogic C-Bus Dimmer 4 channel, high power, DIN rail mount, inbuilt switchable C-Bus power supply

Item Number: 5504DHD

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width144 mm

Height92 mm

Depth63 mm

See full specifications

Specifications

Design

Range	SpaceLogic C-Bus
Product brand	Schneider Electric
Product or component type	dimmer
Device application	light control

Physical

Device presentation	complete device
Provided equipment	1 400 mm patch cable
Load type	dimmable LED halogen lamp halogen lamp with standard electronic transformer halogen lamp with standard ferromagnetic transformer incandescent lamps
Dimmer type	trailing edge leading edge
Communication network type	C-Bus
Number of channels	4
Connector type	2 RJ45 connectors for C-Bus
Device mounting	DIN rail
Mounting support	DIN rail
Width	144 mm
Height	92 mm
Depth	63 mm
Net weight	417 g
Ambient air temperature for operation	-5...55 °C
Ambient air temperature for storage	-20...60 °C
Relative humidity	10...93 % non-condensing
Standards	REACH RoHS
Product certifications	RCM UKCA CE
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2310006EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 3 bare product quantity	150
Package 2 bare product quantity	10
Package 1 bare product quantity	1
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Load current	5 A per channel 12 A per unit 6 A maximum total load allowed on any two adjacent channels
Main colour tint	white
Network frequency	47...53 Hz 57...63 Hz
Number of modules	12
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	10.200 cm
Package 1 width	9.600 cm
Package 1 length	22.300 cm
Package 1 weight	958.000 g
Unit type of package 2	S04
Number of units in package 2	10
Package 2 height	30.000 cm
Package 2 width	40.000 cm
Package 2 length	60.000 cm
Package 2 weight	9.580 kg
Unit type of package 3	P12
Number of units in package 3	150
Package 3 height	103.400 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	143.700 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	100 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	42.058812220566324
Carbon footprint of the manufacturing phase [a1 to a3]	42 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.20048879284649776
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.1865608047690015
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	56.17326315789475
Carbon footprint of the use phase [b2, b3, b4, b6]	56 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.9278549925484353
Carbon footprint of the end-of-life phase [c1 to c4]	0.9 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	99.54697996862501
Average percentage of recycled metal content	0 %
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2310006EN
Take-back	No
Warranty (in months)	18
