C-Bus, DALI Advanced Input Module

Home ProductsSmart Home SolutionsC-BusDALI Advanced Input Module

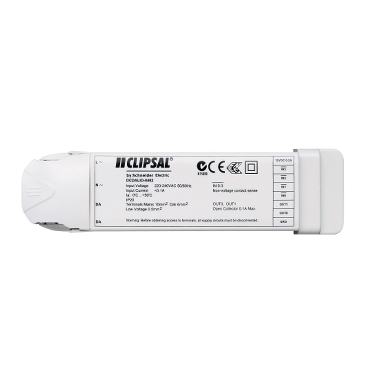

C-Bus, DALI Advanced Input Module

Item Number: DCDALIO-0402

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

DALI Control

Product or component type

input and ouput module

Device application

  • traffic counting
  • car park guidance

Physical

[ue] rated operational voltage

220...240 V AC 50/60 Hz

Ambient air temperature for operation

0...50 °C

Ip degree of protection

IP20

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Number of inputs

4

Number of outputs

2

Input voltage

12 V DC

Current consumption

< 100 mA

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

160 g

Sustainable packaging

No

Warranty (in months)

18
