C-Bus Architectural Dimmer with 6 RCD, Universal, 12 Channel, 10A

1 PCE 0

Qty	UoM	EAN	Colour
			-
			-
			-

Qty	UoM	EAN	Colour
1	PCE	9311554707903	-

Specifications

Range	C-Bus
Product or component type	dimmer
Device application	control

Load type	incandescent: 20 W (minimum)
Provided equipment	RCCB, 2
Number of channels	12
Standards	AS/NZS CISPR 14-1 IEC 60669-2-1 EN 61000-3-11 IEC 60439-1 EN 55014-1 EN 61000-3-3 EN 55015 AS/NZS CISPR 15 AS/NZS 3439-1 EN 61000-3-2 EN 61000-3-5
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2310006EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Weee applicability	Finished product
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Maximum leakage current	10 mA
[us] rated supply voltage	240 V AC 47...53 Hz 415 V AC 47...53 Hz
Starting time	0.5 s
Rated breaking capacity	6 kA
[ui] rated insulation voltage	500 V
Dielectric strength	2500 V
Directives	2004/108/EC - electromagnetic compatibility
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	32.8 cm
Package 1 width	61.7 cm
Package 1 length	76.3 cm
Package 1 weight	15.26 kg
Total lifecycle carbon footprint	313 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	216.91958622168204
Carbon footprint of the manufacturing phase [a1 to a3]	217 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	5.394898596775562
Carbon footprint of the distribution phase [a4]	5 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0056344521445384176
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	88.49195173716083
Carbon footprint of the use phase [b2, b3, b4, b6]	88 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	2.6454301413978847
Carbon footprint of the end-of-life phase [c1 to c4]	3 kg CO2 eq.
Pvc free	No
Halogen-free status	Halogen free product
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	313.4575011491608
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2310006EN
Take-back	No
Warranty (in months)	18

Documents & downloads

All
Product Brochures
CAD Files and Packs
Technical Data Catalogues
Installation Instruction
Operating Manuals
Specification Guide
Application Notes
Declaration of Conformity (Sustainability)
Software - Release
Software - Data Library

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

C-Bus Architectural Dimmer with 6 RCD, Universal, 12 Channel, 10A

Item Number: L5112D10UAR6

Colour ()

Datasheet

Barcode

Specifications

Documents & downloads

All

Product Brochures

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

Operating Manuals

Specification Guide

Application Notes

Declaration of Conformity (Sustainability)

Software - Release

Software - Data Library

998-20872742_SpaceLogic C-Bus Commercial Brochure

C-Bus Infinity Architectural High Powered Dimmers, 18491

C-Bus Infinity Dimming Solutions, 18492

C-Bus High Powered Dimming, 22764

C-Bus Energy Management & Control System, The ultimate control solution

Saturn, Pure Glass - Beautifully crafted, 6314

One touch - blinding levels of control, 14804

C-Bus Cool levels of control, Ceiling Sweep Fan Control Relay, 22457

C-Bus, Measure, monitor and control, C-Bus Current Measurement Unit, 23021

Reflection, expression without words

Revit Pack C-Bus Wired

Revit Pack C-Bus Wireless

C-Bus Product Overview Catalogue, 22762

C-Bus Architectural and Professional Dimmer Technical Information Chart

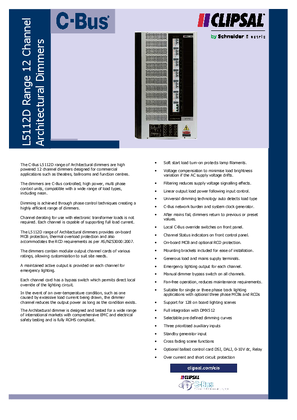

Data Sheet C-bus L51xxDxxUA Professional Universal Dimmer
