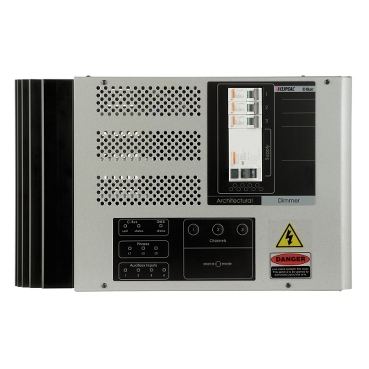

C-Bus Architectural Dimmer 3 Channel, 10A

C-Bus Architectural Dimmer 3 Channel, 10A

Item Number: L5103D10UAR1

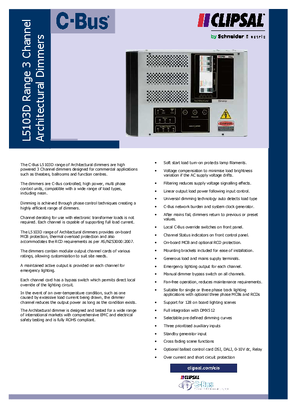

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

C-Bus

Product or component type

dimmer

Device application

control

Physical

Load type

incandescent: 20 W (minimum)

Provided equipment

RCCB, 4

Number of channels

3

Standards

<ul><li>EN 61000-3-5</li><li>IEC 60439-1</li><li>EN 61000-3-11</li><li>AS/NZS CISPR 15</li><li>AS/NZS 3439-1</li><li>EN 61000-3-2</li><li>EN 61000-3-3</li><li>EN 55014-1</li><li>EN 55015</li><li>IEC 60669-2-1</li><li>AS/NZS CISPR 14-1</li></ul>

Eu rohs directive

Not compliant

Others

Package 1 bare product quantity

1

Maximum leakage current

10 mA

[us] rated supply voltage

<ul><li>240 V AC 47...53 Hz</li><li>415 V AC 47...53 Hz</li></ul>

Starting time

0.5 s

Rated breaking capacity

6 kA

[ui] rated insulation voltage

500 V

Dielectric strength

2500 V

Directives

2004/108/EC - electromagnetic compatibility

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

61.8 cm

Package 1 width

29.4 cm

Package 1 length

37 cm

Package 1 weight

1 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
