Infrascan Passive Infrared Motion Sensor 360deg | White Electric

Item Number: CPL753SSR-WE

White Electric 1 PCE 0

This Infrascan motion sensor is a 3-wire motion sensor with a maximum load handling of 10A. The detection range of this motion sensor is 24m diameter with an angle of 360° (ceiling installation at 2.5m height). The delay time can be adjusted between 5 seconds and 15 minutes.

Where To Buy

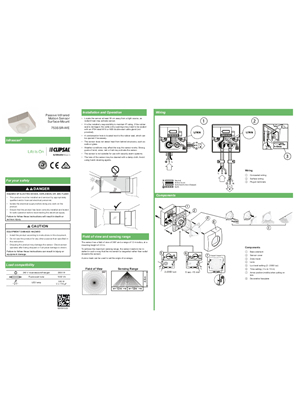

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554752699	WE

Specifications

Design

Range	Infrascan
Product brand	Clipsal
Product or component type	movement sensor

Physical

Sensor type	PIR
[ue] rated operational voltage	200...265 V AC
Movement detection area	24 m
Device mounting	surface
Ip degree of protection	IP54
Ambient air temperature for operation	-20...50 °C
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2303011EN
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Average percentage of recycled plastic content	0 %
Warranty duration(in months) bmecat	18
Main colour tint	white electric
Network frequency	50 Hz
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.9 cm
Package 1 width	12.9 cm
Package 1 length	18.1 cm
Package 1 weight	287.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	17 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	8.473329601616472
Carbon footprint of the manufacturing phase [a1 to a3]	8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.08247542257570652
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.09427591490820438
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	8.135523684210527
Carbon footprint of the use phase [b2, b3, b4, b6]	8 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6204108601341527
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	17.406015483445064
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	ENVEOLI2303011_V1
Take-back	No
Warranty (in months)	18
