Clipsal - Motion Sensor Infrascan PIR Sensor 360 Degree, Flush Ceiling Mount, Gimble, Single Output

Item Number: 753CF1

1 PCE 0

Where To Buy

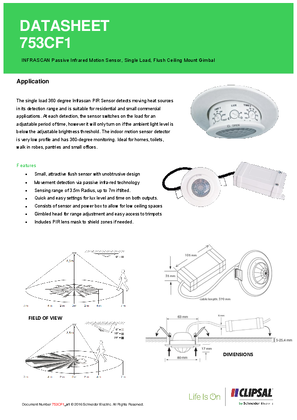

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554792367	-

Specifications

Design

Range of product	ARGUS standard movement detector
Range	ARGUS
Product or component type	presence detector with IR receiver
Colour tint	white

Physical

Load type	halogen lamp: 1000 W, AC incandescent lamp: 1000 W, AC compact fluorescent lamp: 3 x 23 W, AC fluorescent lamp: 200 VA, AC
[ue] rated operational voltage	220...240 V
[ue] rated operational voltage	220...240 V
Output current	10 A
Number of channels	1
Control type	movement sensor
Function available	switching, toggling, dimming
Light intensity adjustment	5...1000 lux
Device mounting	ceiling
Mounting height	2.5...2.5 m
Ip degree of protection	IP20
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2303011EN
Eu rohs directive	Compliant

Material

Material	ABS + PC matt

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
	Outside of Europe
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Network frequency	50/60 Hz
Horizontal detection angle	360 °
Cable length	0.035 m
Detection face	radius
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6.4 cm
Package 1 width	12.6 cm
Package 1 length	13.2 cm
Package 1 weight	254.0 g
Total lifecycle carbon footprint	16 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.499044316413184
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.07299218583355212
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.08343582713130283
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	8.135523684210527
Carbon footprint of the use phase [b2, b3, b4, b6]	8 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.5490744197702955
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	16.34007043335886
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	ENVEOLI2303011_V1
Take-back	No
Warranty (in months)	18
