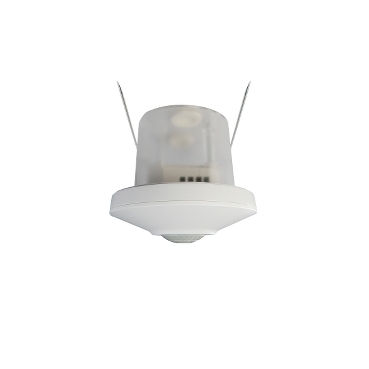

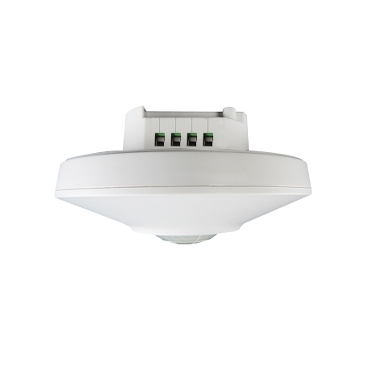

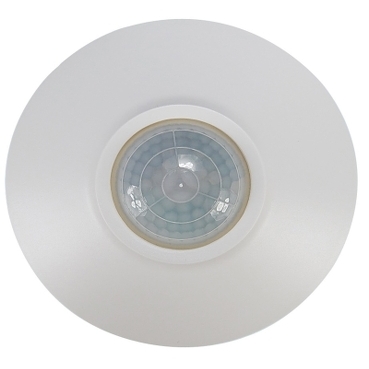

ARGUS Movement detectors PIR Sensor Master, 360deg, Dual DALI Output, Remote Control Option
Item Number: 752DALIRC
Datasheet
Specifications
Design
| Range of product | ARGUS standard movement detector |
|---|---|
| Range | ARGUS |
| Product or component type | presence detector with IR receiver |
| Colour tint | white |
Physical
| Load type | ballast: 25 with Dali electronic ballast |
|---|---|
| Communication port protocol | DALI |
| Number of channels | 2 |
| Type of setting | pre-programmed time |
| Control type | movement sensor |
| Function available |
|
| Light intensity adjustment | 10...2000 lux |
| Device mounting |
|
| Mounting height | 2.5...2.5 m |
| Ip degree of protection | IP20 |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1201002EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
Other technical guide
-
Environmental Disclosure
-

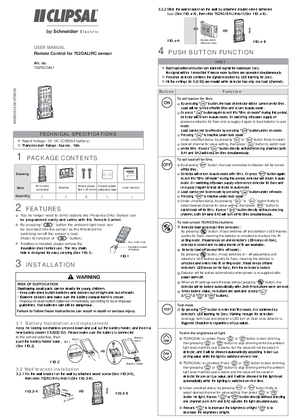

Operating Manuals
-
Declaration of Conformity (Sustainability)

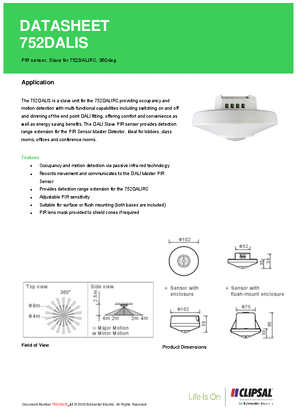

Technical Data Sheet for 752DALIS DALi PIR Sensor
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0

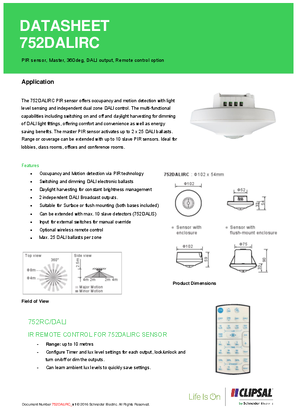

Technical Data Sheet for 752DALIRC DALi PIR Sensor
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0

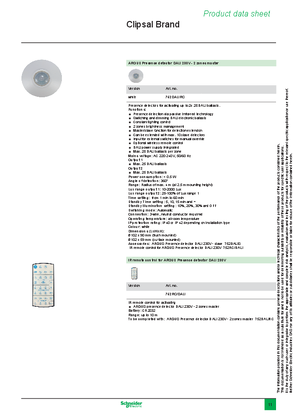

Technical leaflet ARGUS Presence detector DALI 230V - 2 zones master/IR remote control
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
752DALIRC EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
752DALIRC EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
752DALIRC EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
752DALIRC EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
752DALIRC REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
752DALIRC REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
