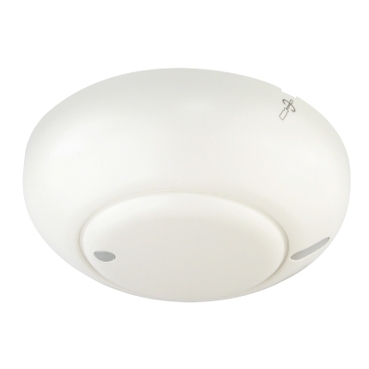

ARGUS Movement detectors Microwave Sensor Dual Channel, Remote Control Option

Home ProductsSecurity and Safety752 Series Motion SensorsMicrowave Sensor

ARGUS Movement detectors Microwave Sensor Dual Channel, Remote Control Option

Item Number: 752HF2RC

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

ARGUS standard movement detector

Range

ARGUS

Product or component type

presence detector

Colour tint

white

Physical

Load type

  • LED lighting: : 100 W
  • incandescent lamps: : 2000 W - 230 V
  • halogen lamp: : 1000 W - 230 V
  • fluorescent tube: 900 VA
  • compact fluorescent lamp: : 100 W
  • motor: : 100 W
  • relay: : 5 A - 250 V

Output current

10 A

Number of channels

2

Control type

movement sensor

Function available

light control

Light intensity adjustment

10...2000 lux

Device mounting

  • surface
  • flush

Mounting height

  • 5.5...10 m
  • 2.5 m

Ip degree of protection

  • IP40
  • IP52

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2303011_V1

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Weee applicability

Finished product

Network frequency

50/60 Hz

Input function

  • switch
  • ON/OFF status

Output voltage

220...250 V

Horizontal detection angle

360 °

Detection face

  • radius: 7000 mm
  • radius: 5000 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

11.8 cm

Package 1 width

13.8 cm

Package 1 length

16.3 cm

Package 1 weight

372.0 g

Total lifecycle carbon footprint

15 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

10.982852305927933

Carbon footprint of the manufacturing phase [a1 to a3]

11 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.10690194145701327

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.12219735312143555

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

4.44819999999999

Carbon footprint of the use phase [b2, b3, b4, b6]

4 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.8041562368289306

Carbon footprint of the end-of-life phase [c1 to c4]

0.8 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

15.3388596445642

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

6ba39e26-4b09-4936-93d2-efbdac7ff03a

End of life manual availability

ENVEOLI2303011EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Other technical guide

  • End of Life Manual

  • Environmental Disclosure

  • Operating Manuals

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

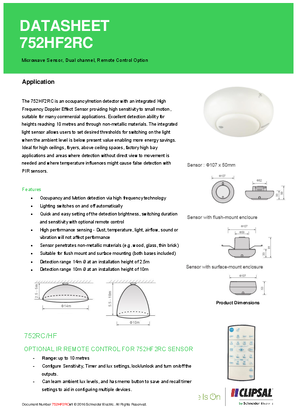

Technical Data Sheet for 752HF2RC Microwave Sensor
ZIP

Technical Data Sheet for 752HF2RC Microwave Sensor

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 397 KB

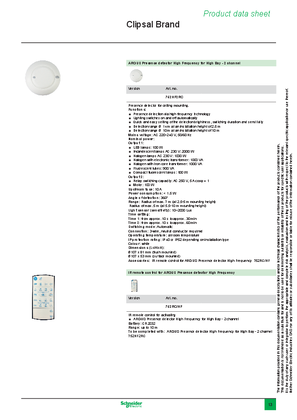

Technical leaflet ARGUS Presence detector High Frequency for High Bay - 2 channel/IR remote control
ZIP

Technical leaflet ARGUS Presence detector High Frequency for High Bay - 2 channel/IR remote control

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 247 KB
Motion Sensor Outdoor, 360, white
ZIP

Motion Sensor Outdoor, 360, white

VERSION

1.0

DATE

24 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 286.8 KB

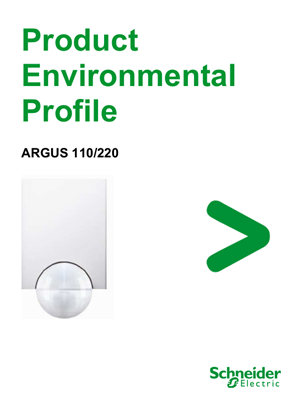

ARGUS - PIR 220 advanced, polar white - Product Environmental Profile
ZIP

ARGUS - PIR 220 advanced, polar white - Product Environmental Profile

VERSION

1.1

DATE

12 Oct 2023

REVISION

1.1

DOWNLOAD (ZIP) 155.4 KB

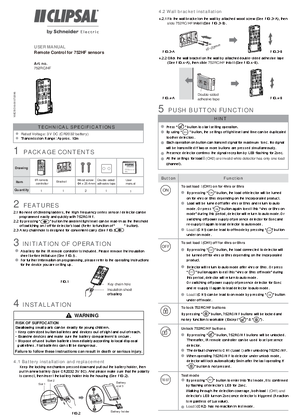

User Guide for 752RC/HF Remote Control for 752HF Sensors
ZIP

User Guide for 752RC/HF Remote Control for 752HF Sensors

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 364.6 KB

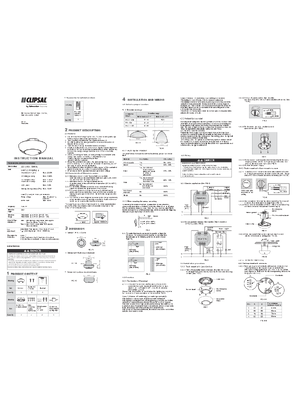

Instruction Manual for752HF2RC Microwave Sensor, dual channel, Remote control option
