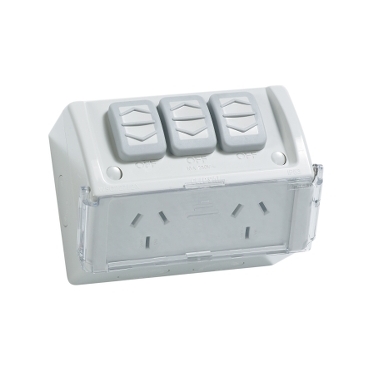

Weathershield, Twin Switch Socket Outlet, 250V, 10A, Weather Proof, Flap, Extra Switch

Weathershield, Twin Switch Socket Outlet, 250V, 10A, Weather Proof, Flap, Extra Switch Resistant Grey

Item Number: WSC227F2X-RG

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Weathershield

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Control type

ON/OFF button|sliding type

Number of gangs

2 gangs

Pin number

3

Number of power socket outlets

2

Fixing mode

by screws

Local signalling

without light indicator

Mounting position

horizontal

[ue] rated operational voltage

250 V AC

[in] rated current

10 A

Length

115 mm

Width

85 mm

Fixing center

84 mm

Ip degree of protection

IP54

Standards

AS/NZS 3112:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP130201EN

Circularity profile

N/A

Material

Material

plastic

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8.6 cm

Package 1 width

9.0 cm

Package 1 length

12.4 cm

Package 1 weight

304.0 g
