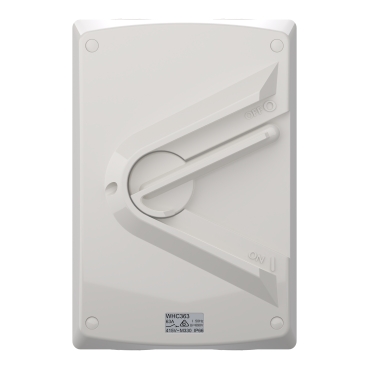

Weathershield Switch 1-Gang, 3 Pole, 63A, 415VAC, IP66 | Chemical Resistant Grey
Item Number: WHC363-RG
The WHC Series of Weathershield lever switches are a robust range of switches suitable for many external application. There are various configurations within the range such as, single, double, triple and four pole switches with various ranges from 10 to 80 Amps. The base mounted mechanism on WHC provides for easier termination and more wiring room. The switch has an IP66 rating to prevent dust and water ingress.
Datasheet
Specifications
Design
| Range of product | Weathershield |
|---|---|
| Product brand | Clipsal |
| Surface finish | brilliant |
Physical
| Device presentation | basic element with complete housing |
|---|---|
| Number of poles | 3 |
| Device mounting | surface |
| Local signalling | without |
| [ue] rated operational voltage | 415 V AC |
| Rated current | 63 A |
| Marking | ON-OFF |
| Fixing mode | by screws |
| Switch function | 3-pole |
| Standards |
|
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2106012_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
