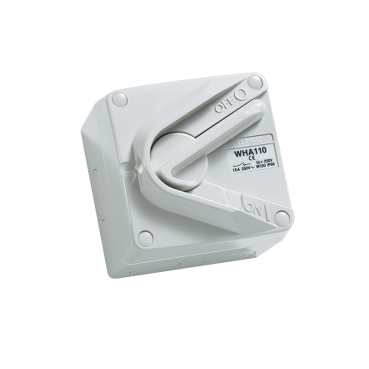

Weathershield Surface Switch 1 Gang, 1 Pole, 250VAC, 10A, Hoseproof, M80 Rating | Chemical Resistant Grey
Item Number: WHA110-RG
Datasheet
Close
Specifications
Design
Range of product
Weathershield
Product brand
Clipsal
Physical
Device presentation
basic element with complete housing
Number of poles
1
Device mounting
surface
Local signalling
without
[ue] rated operational voltage
250 V AC
Rated current
10 A
Marking
ON-OFF
Fixing mode
by screws
Switch function
1-pole
Standards
- AS 60529
- AS/NZS 60947-3
- IEC 60669-1
- AS/NZS 3947-3:approval number S/1
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental disclosure
ENVPEP130201EN
Circularity profile
N/A
Others
Package 1 bare product quantity
1
Marking location
marking on surface
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
8.8 cm
Package 1 width
8.8 cm
Package 1 length
8.8 cm
Package 1 weight
235.0 g
