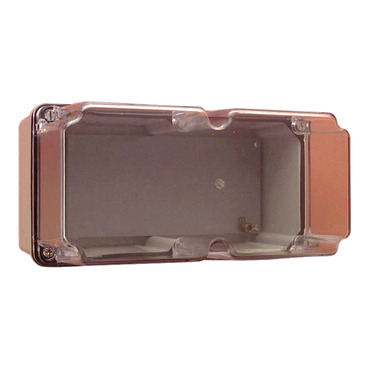

Specifications
Design
| Product brand | Clipsal |
|---|---|
| Range of product | Weathershield |
Physical
| Width | 108 mm |
|---|---|
| Height | 139 mm |
| Depth | 211 mm |
| Device mounting | surface |
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP110719EN |
| Eu rohs directive | Compliant |
Material
| Material | PVC (polyvinyl chloride): housing |
|---|
Documents & downloads
-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Declaration of Conformity (Sustainability)
Frequently Asked Questions
Do the CT and PT need to be removed during the process of removing the Hardware Lock off the COM Card of the ION7650?
Hide ShowIssue
Do the CT and PT need to be removed during the process of removing the Hardware Lock off the COM Card of the ION7650?
Product Line
ION7650
Environment
ION7650 COM Card
Resolution
The following should be considered:
- The Meter must be powered off while performing the next step.
- CT and PT connections must be completely removed.
Video: How to enable or disable an ION Meter Web Page?
Hide ShowIssue
When trying to connect to an ION meter through a web browser, an error " Page can not be displayed" or "This site can't be reached", depending on which web browser, is displayed.
Product Line
ION 8650, 8600, 7650, 7550, 7600, 7500
PM8000
Environment
ION Meter Web Page
Cause
The ION Meter Web Page has been disabled.
Resolution
Enable the ION Meters Web Page functionality.
Note: For PM8000 meters, ION Setup V3.0.15140.02 or later must be used. The latest version of ION Setup can be obtained from FA212816.
1. Connect to the meter in Advanced Mode using ION Setup.
2. Select the Comm Modules folder and then the Ethernet module.
3. Under the Setup Registers Tab, select ETH1 Enable Webserver and change the value to 'Yes' to enable the Web server, or 'No' to disable it. (Refer to the screen shot below)
NOTE: the ETH1 Webserver Config Access will enable or disable the ability to make configuration changes from the ION Meter Web Page.
Note: For instructions on connecting to an ION Meter in Advanced Mode, please refer to ION Setup 3.0 User Guide. Latest ION Setup User Guide can be obtained by visiting following link:
https://www.schneider-electric.com/en/product-range-download/61461-ion-setup-3.0
Please note that if the device is communicating over a managed switch, you may need to use the IP address signed by the switch when trying to browse the meter webpage.
