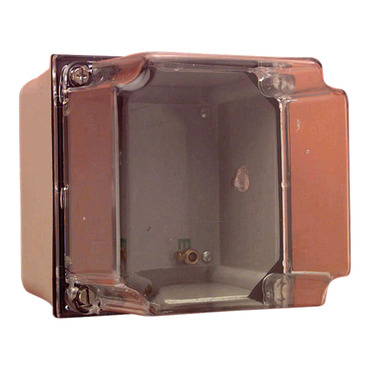

Specifications
Design
Product brand
Clipsal
Range of product
Weathershield
Physical
Width
108 mm
Height
139 mm
Depth
108 mm
Device mounting
surface
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs exemption information
Yes
Environmental disclosure
ENVPEP110719EN
Circularity profile
N/A
Material
Material
PVC (polyvinyl chloride): housing
Others
Package 1 bare product quantity
1
Cover type
transparent
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.9 cm
Package 1 width
10.8 cm
Package 1 length
10.8 cm
Package 1 weight
0.585 kg
