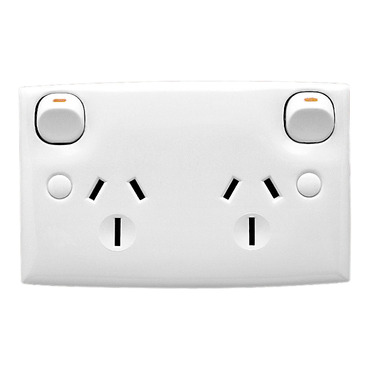

Standard Series Twin Switch Socket Outlet 250V, 15A, Standard Size, 2 Pole | White Electric
Item Number: 25D15-WE
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product or component type
switched socket
Product brand
Clipsal
Surface finish
glossy
Physical
Control type
ON/OFF button
Number of gangs
2 gangs
Pin number
3
Number of power socket outlets
2
Actuator
- rocker
- switch
Fixing mode
by screws
Local signalling
without light indicator
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
15 A
Depth
16 mm
Length
115 mm
Width
73 mm
Fixing center
84 mm
Standards
- AS/NZS 3100
- AS/NZS 3112
- AS/NZS 3133
- AS/NZS 3000:approval number S/1
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Environmental disclosure
ENVPEP120506EN
Circularity profile
N/A
Material
Material
PC (polycarbonate)
Others
Commercial status history
- SESA301466
- Mon Oct 02 08:40:00 EDT 2023
- From Import Local
- From 19 to 19
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
11.6 cm
Package 1 width
12.0 cm
Package 1 length
7.3 cm
Package 1 weight
142.0 g
Documents & downloads
hide showFilter items
-
All
-
Technical Data Catalogues
-
Specification Guide
