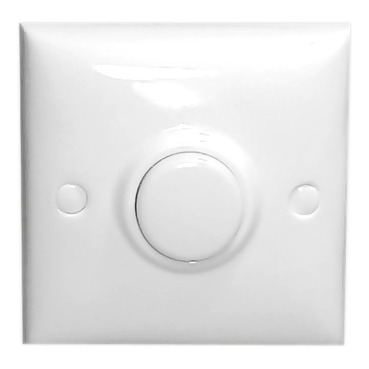

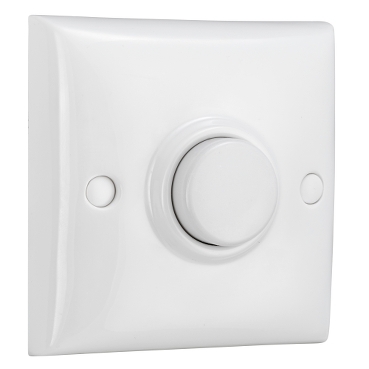

Standard Series, Switch Time Delay

Standard Series, Switch Time Delay WE

Item Number: E319-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Series 319

Surface finish

glossy

Physical

Device presentation

basic element with full cover plate

Device mounting

flush

[ue] rated operational voltage

250 V

Rated current

10 A

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Others

Package 1 bare product quantity

1

Autonomy

0.0083...0.33 h

Network frequency

50/60 Hz

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.8 cm

Package 1 width

8.4 cm

Package 1 length

8.4 cm

Package 1 weight

0.106 kg

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

14 cm

Package 2 width

16.1 cm

Package 2 length

28 cm

Package 2 weight

1.34 kg

Unit type of package 3

CAR

Number of units in package 3

50

Package 3 height

30.5 cm

Package 3 width

29.6 cm

Package 3 length

43.6 cm

Package 3 weight

6550 g
