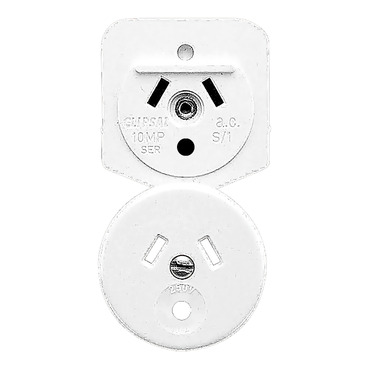

Standard Series Socket Unswitched Panel Mount Round Earth | White Electric
Item Number: 415MPL-WE
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Physical
Outlet standard description
pin earth
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
Mounting support
panel
Fixing mode
by screws
[in] rated current
10 A
[ue] rated operational voltage
250 V AC
Depth
25 mm
Length
45 mm
Number of poles
1
Width
42 mm
Standards
- AS/NZS 3112
- AS 3100
- AS 3109
- AS/NZS 3122:approval number S/1
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP111024EN
Eu rohs directive
Compliant
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cover type
complete housing
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.5 cm
Package 1 width
4.2 cm
Package 1 length
4.5 cm
Package 1 weight
0.001 kg
Sustainable packaging
No
End of life manual availability
ENVEOLI110713EN
Warranty (in months)
18
