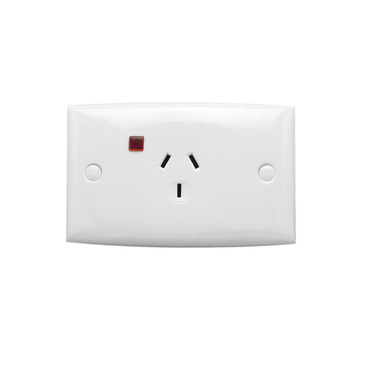

Standard Series Socket Auto Switched Single Double Pole 10A Neon | White Electric
Item Number: 10DN-WE
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product brand
Clipsal
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
indicator light
Fixing mode
by screws
[in] rated current
10 A
[ue] rated operational voltage
250 V AC
Depth
16 mm
Length
115 mm
Fixing center
84 mm
Width
73 mm
Standards
- AS/NZS 3100
- AS/NZS 3112
- AS/NZS 3133:approval number S/1
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Weee label
N/A
Outside of Europe
Package 1 bare product quantity
1
Cover type
full cover plate
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.6 cm
Package 1 width
7.3 cm
Package 1 length
11.5 cm
Package 1 weight
0.152 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
