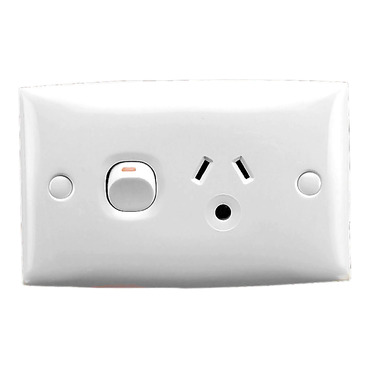

Standard Series Single Switch Socket Outlet 250V 10A Standard Size Round Earth PIN for Lighting | White Electric
Item Number: 15L-WE
Datasheet
Specifications
Design
| Range of product | Standard Series |
|---|---|
| Product or component type | switched socket |
| Product brand | Clipsal |
| Surface finish | glossy |
Physical
| Control type | ON/OFF button |
|---|---|
| Number of gangs | 1 gang |
| Pin number | 3 |
| Number of power socket outlets | 1 |
| Actuator |
|
| Fixing mode | by screws |
| Local signalling | without light indicator |
| Mounting position | horizontal |
| [ue] rated operational voltage | 250 V AC |
| [in] rated current | 10 A |
| Depth | 14 mm |
| Length | 115 mm |
| Width | 73 mm |
| Fixing center | 84 mm |
| Standards |
|
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | PC (polycarbonate) |
|---|
Documents & downloads
-
All
-
Technical Data Catalogues
-
Specification Guide
-
Declaration of Conformity
-
Declaration of Conformity (Sustainability)
Frequently Asked Questions
Cortex Meter Contactor Specifications
Hide ShowContactors can be supplied by various OEMs; however, the following specifications are strongly recommended to ensure reliable service of the Clipsal Cortex load control application:
- Suitable Nominal current ranges from 25A upwards for loads
- Resistive loads including 3.6 kW or 4.8 kW heating element/s expected in 315L & 400L tanks
- Reasonable current de-ratings as per AC-1, AC-7a & AC-7b
- AC-1: Non-inductive or slightly inductive loads, example: resistive furnaces, heaters
- AC-7a: Slightly inductive loads in household appliances: examples: mixers, blenders
- AC-7b: Motor-loads for household appliances: examples: fans, central vacuum
- Compliance to IEC/EN 61095 & RCM approval
- Rated for 100,000 electrical coil operations
- Rated for 1,000,000 mechanical operations
- 1 Normally Closed Contact (NC) + 1 Normally Open Contact (NO)
- Coil Voltage of 240Vac
- 1 pole (18mm) width to save space
- Manual Override switch (I / Auto / O)
- RCM approval
- Hum Free contactors are not supported (Example Voltex Contactors MC-25-240-R-1NO1NC)
