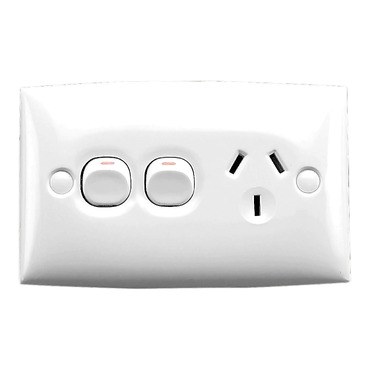

Standard Series Single Switch Socket Outlet 250V 10A Standard Size, 2 Pole, Removable Ex Switch

White Electric 1 PCE 0

Home ProductsPower Points and SwitchesStandard SeriesSingle Switch Socket Outlet 250V 10A

Standard Series Single Switch Socket Outlet 250V 10A Standard Size, 2 Pole, Removable Ex Switch | White Electric

Item Number: 15DX-WE

White Electric 1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554034788	WE
5	CRT	9311554213916	WE
50	CAR	19311554101685	WE

Specifications

Design

Range of product	Standard Series
Product or component type	switched socket
Product brand	Clipsal
Surface finish	glossy

Physical

Control type	ON/OFF button
Number of gangs	1 gang
Pin number	3
Number of power socket outlets	1
Actuator	switch rocker
Fixing mode	by screws
Local signalling	without light indicator
Mounting position	horizontal
[ue] rated operational voltage	250 V AC
[in] rated current	10 A
Depth	14 mm
Length	115 mm
Width	73 mm
Fixing center	84 mm
Standards	AS/NZS 3100 AS/NZS 3112 AS/NZS 3133 AS/NZS 3000:approval number S/1
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN
Eu rohs directive	Compliant By Exemption

Material

Material	PC (polycarbonate)

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	5
Average percentage of recycled plastic content	0 %
	Outside of Europe
Legacy weee scope	In
Weee label	N/A
Weee applicability	Finished product
Main colour tint	white electric
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.7 cm
Package 1 width	7.3 cm
Package 1 length	11.5 cm
Package 1 weight	104 g
Unit type of package 2	BB1
Number of units in package 2	5
Package 2 height	12.2 cm
Package 2 width	10.6 cm
Package 2 length	14.2 cm
Package 2 weight	582 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.9 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.5090480529227562
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.019235014168508632
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.003482661392768265
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1056339273201361
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.25366551492578804
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.8910651707299573
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
