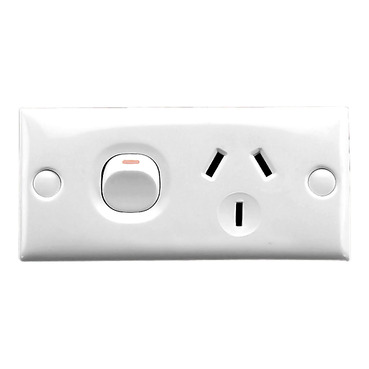

Standard Series Single Switch Socket Outlet 250V, 10A, Skirt Mount, Inline Termina | White Electric
Item Number: 16F-WE
Datasheet
Close
Specifications
Design
Range of product
Standard Series
Product or component type
switched socket
Product brand
Clipsal
Surface finish
glossy
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Actuator
- rocker
- switch
Fixing mode
by screws
Local signalling
without light indicator
Mounting position
horizontal
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Depth
14 mm
Length
98 mm
Width
45 mm
Fixing center
78 mm
Standards
- AS/NZS 3100
- AS/NZS 3112
- AS/NZS 3133:approval number S/1
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
plastic
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.4 cm
Package 1 width
4.5 cm
Package 1 length
9.8 cm
Package 1 weight
0.04 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
