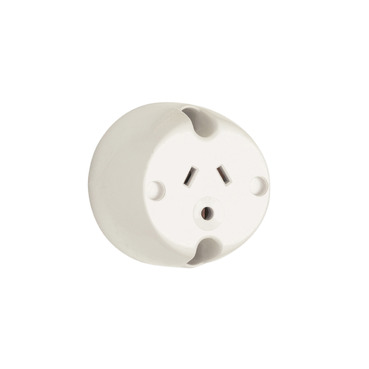

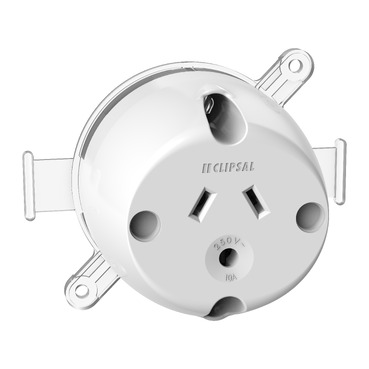

Standard Series, Single Socket Outlet, 250VAC, 10A, 3 PIN, Round Earth Pin

Standard Series, Single Socket Outlet, 250VAC, 10A, 3 PIN, Round Earth Pin White Electric

Item Number: 413L-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

socket-outlet

Product brand

Clipsal

Physical

Outlet standard description

pin earth

Quantity per set

set of 1

Marking

without marking

Local signalling

without light indicator

Device mounting

surface

Fixing mode

by screws

[in] rated current

10 A

[ue] rated operational voltage

250 V AC

Depth

46 mm

Fixing center

50 mm

Number of poles

1

Standards

AS/NZS 3112|AS 3100|AS 3109|AS/NZS 3122:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

plastic

Others

Package 1 bare product quantity

1

Cover type

complete housing

Network frequency

50 Hz

Diameter

66 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

5.8 cm

Package 1 width

6.6 cm

Package 1 length

9.2 cm

Package 1 weight

70.0 g
