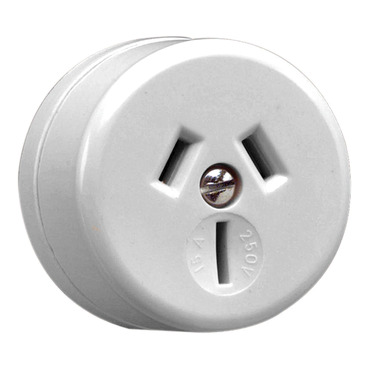

Standard Series Single Socket Outlet 230VAC, 15A, 3 PIN, Surface Mount | White Electric
Item Number: 412/15-WE
Datasheet
Close
Specifications
Design
Product or component type
socket-outlet
Product brand
Clipsal
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
Device mounting
surface
Fixing mode
by screws
[in] rated current
15 A
[ue] rated operational voltage
250 V AC
Depth
28 mm
Fixing center
35...38 mm
Number of poles
1
Standards
- AS/NZS 3112
- AS 3100
- AS 3109
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope
Eu rohs directive
Compliant By Exemption
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
plastic
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Warranty duration(in months) bmecat
18
Weee label
N/A
Cover type
complete housing
Diameter
47 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.2 cm
Package 1 width
5.2 cm
Package 1 length
5.2 cm
Package 1 weight
40 g
Sustainable packaging
No
China rohs label
5
End of life manual availability
N/A
Warranty (in months)
18
