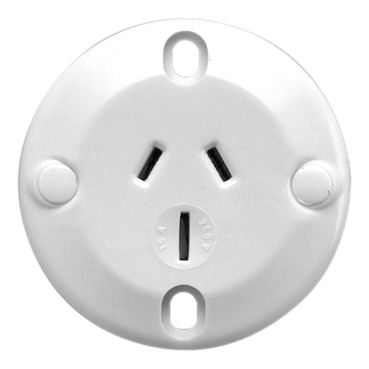

Standard Series Rear Connecting Socket Outlet Single, 3 PIN, 250VAC, 15A | White Electric
Item Number: 426/15-WE
Datasheet
Close
Specifications
Design
Range of product
Series 426
Product brand
Clipsal
Physical
Quantity per set
set of 1
Marking
without marking
Local signalling
without light indicator
Device mounting
flush
Fixing mode
by screws
[in] rated current
15 A
[ue] rated operational voltage
250 V AC
Depth
24 mm
Fixing center
50 mm
Standards
- AS/NZS 3112
- AS 3100
- AS 3109
- AS/NZS 3122:approval number S/1
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
plastic
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Cover type
complete housing
Diameter
66 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.06 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
