Home ProductsPower Points and SwitchesStandard SeriesPlug

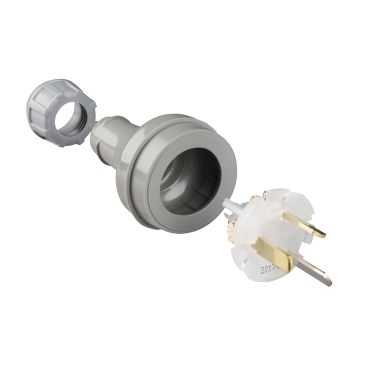

Standard Series Plug Flexible, Straight, 3 PIN, 10A, 250V, Extra Heavy Duty | Transparent

Item Number: 439SXHD-TR

Transparent 1 PCE 0
Grey 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554595913	GY
10	CRT	9311554595920	GY
200	CAR	19311554595910	GY
1	PCE	9311554595890	TR
10	CRT	9311554595906	TR
200	CAR	19311554595897	TR

Specifications

Design

Range of product	Standard Series
Product brand	Clipsal
Colour	transparent

Physical

[in] rated current	10 A
[ue] rated operational voltage	230 V 50/60 Hz conforming to EN 60309-2
Connections - terminals	screw terminal
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2512011EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Voltage colour	blue
Plug, socket, control station shape	straight
Duration	6 h
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.8 cm
Package 1 width	7.1 cm
Package 1 length	10 cm
Package 1 weight	42 g
Total lifecycle carbon footprint	0.4 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.257297051827856
Carbon footprint of the manufacturing phase [a1 to a3]	0.3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0150537600158027
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00653669975130881
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.0959290109005392
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.374816522495507
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
China rohs label	5
Halogen-free status	Halogen free product
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
