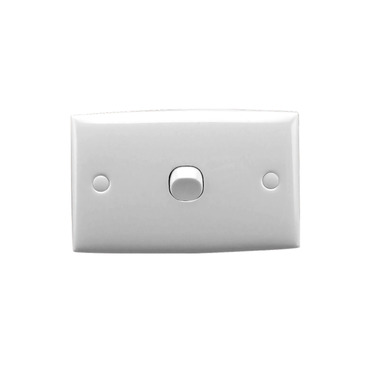

Standard Series Flush Switch 1 Gang, 250VAC, 10A, Standard, Horizontal, PTN

Standard Series Flush Switch 1 Gang, 250VAC, 10A, Standard, Horizontal, PTN | White Electric

Item Number: 31HA-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product brand

Clipsal

Physical

Device presentation

basic element with full cover plate

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

10 A

Marking

without marking

Fixing mode

by screws

Actuator

rocker

Switch function

  • 2-way
  • 1-way

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Commercial status history

  • SESA301466
  • Mon Oct 02 08:40:00 EDT 2023
  • From Import Local
  • From 19 to 19

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.9 cm

Package 1 width

7.3 cm

Package 1 length

11.5 cm

Package 1 weight

55.65 g

Unit type of package 2

BB1

Number of units in package 2

10

Package 2 height

12 cm

Package 2 width

13.8 cm

Package 2 length

15.3 cm

Package 2 weight

0.644 kg

Unit type of package 3

CAR

Number of units in package 3

200

Package 3 height

38 cm

Package 3 width

35.5 cm

Package 3 length

46 cm

Package 3 weight

11.7 kg
Show all specifications
