Datasheet
Close
Specifications
Design
Product brand
Clipsal
Product or component type

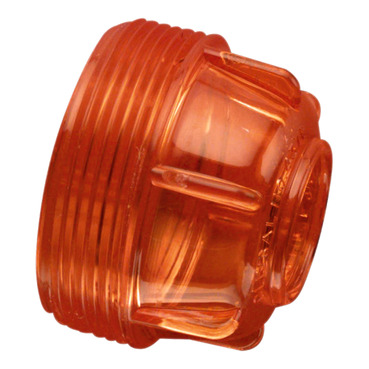

coupling ring
Physical
Mounting support
plug
Fixing center
53 x 38 mm
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP1605009
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
PVC (polyvinyl chloride)
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.04 kg
Sustainable packaging
No
Scip number
c6f2fabe-d5ba-4588-bd03-c90f7def1381
End of life manual availability
N/A
Warranty (in months)
18
