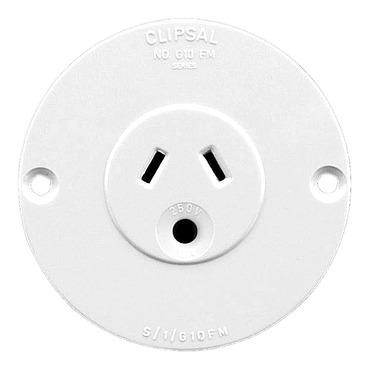

Standard Series Automatic Switch Socket Outlet 2 Pole Round Earth PIN Safety Shutter 250VAC 10A | White Electric
Item Number: G10FMDLS-WE
Datasheet
Close
Specifications
Design
Range of product
Series G10F
Product or component type
socket-outlet
Product brand
Clipsal
Physical
Outlet standard description
pin earth
Quantity per set
set of 1
Marking
without marking
Protection type
fingersafe
Local signalling
without light indicator
Device mounting
flush
Fixing mode
by screws
[in] rated current
10 A
[ue] rated operational voltage
250 V AC
Depth
26 mm
Fixing center
64 mm
Number of poles
2
Standards
- AS/NZS 3112
- AS 3100
- AS 3109
- AS/NZS 3122:approval number S/1
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Commercial status history
- SESA301466
- Thu Aug 10 18:38:00 EDT 2023
- From Import Local
- From 18 to 19
Package 1 bare product quantity
1
Cover type
complete housing
Diameter
74 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.3 cm
Package 1 width
7.5 cm
Package 1 length
7.5 cm
Package 1 weight
56.2 g
