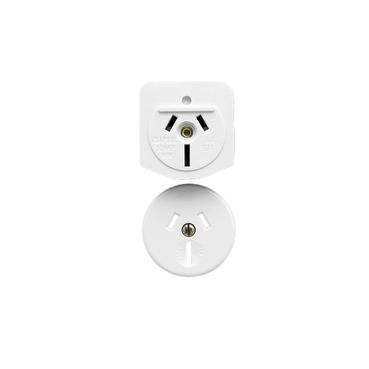

Standard Series, Automatic Single Socket Outlet Mechanism, 250VAC, 15A, 2 Pole, Panel Mount WE

Item Number: 10MDP15-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Standard Series

Product or component type

socket-outlet

Product brand

Clipsal

Physical

Quantity per set

set of 1

Marking

without marking

Local signalling

without light indicator

Device mounting

flush

Fixing mode

by screws

[in] rated current

15 A

[ue] rated operational voltage

250 V AC

Depth

33 mm

Length

43 mm

Width

42 mm

Fixing center

84 mm

Number of poles

2

Standards

AS/NZS 3100|AS/NZS 3112|AS/NZS 3133:approval number S/1

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Commercial status history

SESA65410 | Tue Mar 19 00:15:00 EDT 2024 | From Import Local | From 19 to 18

Package 1 bare product quantity

1

Cover type

complete housing

Socket additional information

with hinged lid

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

4.4 cm

Package 1 length

4.3 cm

Package 1 weight

52 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

6.8 cm

Package 2 width

8.4 cm

Package 2 length

10.8 cm

Package 2 weight

280 g

Unit type of package 3

CAR

Number of units in package 3

50

Package 3 height

11.7 cm

Package 3 width

25 cm

Package 3 length

31 cm

Package 3 weight

2.8 kg
