Clipsal Solis T Series Double Switch Power Point horizontal, 10A

Clipsal Solis T Series Double Switch Power Point horizontal, 10A | White Ceramic

Item Number: 1025-WC

Datasheet

Product Dimensions

Width icon

Width148 mm

Height icon

Height74 mm

Embedding depth icon

Embedding depth23.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Clipsal Solis T Series

Product or component type

switched socket

Product brand

Clipsal

Colour tint

white ceramic

Surface finish

polished

Surface treatment

painted

Physical

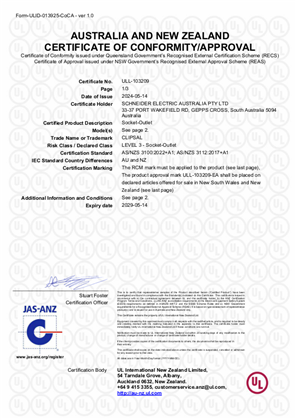

Product certifications

RCM

Relative humidity

10...95 %

Ambient air temperature for operation

0...45 °C

Standards

AS/NZS 3112

Device presentation

complete product

Control type

rocker

Number of power socket outlets

2

Fixing mode

screw

Device mounting

flush

Mounting position

horizontal

[ue] rated operational voltage

230/240 V AC

[in] rated current

10 A

Connections - terminals

  • 4 x 2.5 mm² screw terminals
  • 3 x 4 mm² screw terminals

Embedding depth

23.5 mm

Depth

27.4 mm

Height

74 mm

Width

148 mm

Fixing center

84 mm

Screwdriver shape

  • Philips No 2
  • square drive no 1 (SQ1)

Wire stripping length

16 mm

Number of power socket outlets

2 x 2P + E, Australian/New Zealand

Number of rocker

2

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

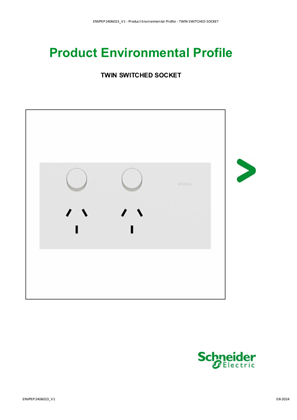

Environmental disclosure

ENVPEP2406023EN

Circularity profile

N/A

Material

Material

ceramic

Others

Commercial status history

  • SESA17836
  • Mon Sep 02 20:45:00 EDT 2024
  • From Import Local
  • From 20 to 08

Substance regulation data deliverable

Yes

Package 2 bare product quantity

40

Package 1 bare product quantity

1

Socket additional information

shuttered

Main colour tint

white ceramic

Socket-outlet type

double socket-outlet

Network frequency

50 Hz

Cut-out dimensions

93 x 50 mm

Thickness

5 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

15.5 cm

Package 1 width

6 cm

Package 1 length

8 cm

Package 1 weight

202 g

Unit type of package 2

CAR

Number of units in package 2

40

Package 2 height

32.5 cm

Package 2 width

25 cm

Package 2 length

41 cm

Package 2 weight

8.46 kg

Packaging without single use plastic

No

Packaging made with recycled cardboard

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

2.330792090609707
