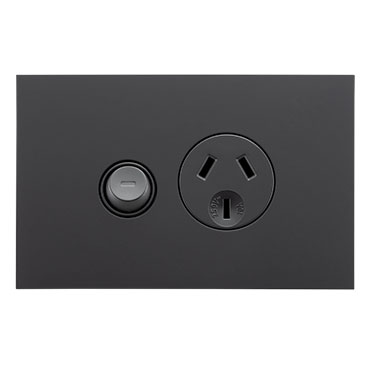

Saturn Zen Single Power Point Horizontal Mount, 250V, 10A

Saturn Zen Single Power Point Horizontal Mount, 250V, 10A | Zen Black

Item Number: Z4015-ZB

Socket outlet assembly for horizontal installations. Single switched socket. Saturn cover and socket grid are included. Clipsal Saturn Zen. Colour: Zen White Rated current: 10A. Operating voltage 250V a.c. 50Hz Note: Requires installation by an appropriately licenced electrician.

Datasheet

Product Dimensions

Width icon

Width116 mm

Height icon

Height75 mm

Embedding depth icon

Embedding depth22 mm

Barcode

Qty UoM EAN Colour
-
-
-

Features

  • 10A power outlets that are compatible with all 250V electrical appliances
  • With a fingerprint-resistant matte finish and a modern square-edged design, the Clipsal Saturn Zen range compliments today’s homes
  • This blends form, function, and affordability to bring a solution which meets your needs

Specifications

Design

Range Clipsal
Colour tint zen white
Product brand Clipsal
Range of product Saturn
Product or component type switched socket

Physical

Width 116 mm
Height 75 mm
[in] rated current 10 A
Embedding depth 22 mm
Socket number 1
Reach free of svhc Yes
Toxic heavy metal free Yes
Mercury free Yes
Rohs exemption information Yes
Environmental disclosure ENVPEP120506EN_V2
Reach regulation Free of Substances of Very High Concern above the threshold
China rohs regulation Product out of China RoHS scope
Eu rohs directive Compliant

Others

Legacy weee scope In
Outside of Europe
Average percentage of recycled plastic content 0 %
Package 1 bare product quantity 1
Warranty duration(in months) bmecat 18
Weee label N/A
Weee applicability Finished product
Main colour tint zen white
Unit type of package 1 PCE
Number of units in package 1 1
Package 1 height 2.0 cm
Package 1 width 9.0 cm
Package 1 length 12.2 cm
Package 1 weight 134.0 g
Green premium status for reporting Green Premium product
Total lifecycle carbon footprint 1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3] 1.059989629628728
Carbon footprint of the manufacturing phase [a1 to a3] 1 kg CO2 eq.
Carbon footprint of the distribution phase [a4] 0.010767148148509091
Carbon footprint of the distribution phase [a4] 0 kg CO2 eq.
Carbon footprint of the installation phase [a5] 0.00020204718563636355
Carbon footprint of the installation phase [a5] 0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6] 0.0103465720964
Carbon footprint of the use phase [b2, b3, b4, b6] 0 kg CO2 eq.
Sustainable packaging No
Carbon footprint of the end-of-life phase [c1 to c4] 0.0193103925916
Carbon footprint of the end-of-life phase [c1 to c4] 0 kg CO2 eq.
Pvc free No
Halogen-free status Halogen free product
Take-back No
Product contributes to saved and avoided emissions No
Removable battery N/A
Total lifecycle carbon footprint 1.100615789650873
Average percentage of recycled metal content 0 %
Packaging made with recycled cardboard Yes
Packaging without single use plastic No
China rohs label 1
Halogen-free status Halogen free product
Pvc free No
End of life manual availability N/A
Take-back No
Warranty (in months) 18

Documents & downloads

Filter items
  • All

  • Product Brochures

  • Technical Data Catalogues

  • Installation Instruction

  • Certificates (MSDS)

  • Declaration of Conformity

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Clipsal Saturn Zen group shot

Elegant and Stylish

Saturn Zen is a range of modern light switches and powerpoints architecturally designed to accentuate a simple refined look.

Boasting features like LED lights, fingerprint-resistant matte finish and a clean design, Saturn Zen embraces modern minimalism.

The option to add features such as interchangeable pictogram button icons and a Smart Shelf for charging electronic devices, evokes simplicity and elegance.

The Saturn Zen range includes push button wall switches, power outlets, data outlets, USB chargers, fan controllers, dimmers, and cooker switches.

Saturn Zen blends form, function, and affordability providing a solution to meets your needs.
