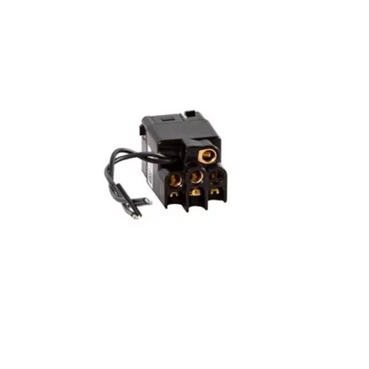

Saturn Series Switch Mechanisms Push-Button 250V, 16AX/20A, 1 Way, 2 Way, LED

Item Number: 60PBL

1 PCE 0

With a blue LED light indicator to tell you when the switch is activated, the Saturn Series push-button switch mechanism is a useful option for many applications. Operating with 1 way, or 2 way switching, the push-button is 250V, 16AX/ 20A.

Where To Buy

Datasheet

Download

Product Dimensions

Width23.5 mm

Height23.5 mm

Embedding depth31.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554682286	-
10	CRT	9311554682293	-
500	CAR	19311554682283	-

Specifications

Design

Range of product	Saturn Series 4000
Product or component type	push-button
Product brand	Clipsal
Colour tint	black

Physical

Device presentation	basic element
Actuator	push-button
Local signalling	indicator light
Fixing mode	by screws
[ue] rated operational voltage	230/240 V AC
Inrush current	20 A
Height	23.5 mm
Depth	40 mm
Embedding depth	31.6 mm
Width	23.5 mm
Mounting position	vertical
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1607004_V2-EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	plastic

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	18
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	3.2 cm
Package 1 width	3.2 cm
Package 1 length	6.6 cm
Package 1 weight	24 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	10 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.19123758516057154
Carbon footprint of the manufacturing phase [a1 to a3]	0.2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.006881142916444067
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.004880103182089104
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	9.4106
Carbon footprint of the use phase [b2, b3, b4, b6]	9 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.056310539622973
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	9.66990937088208
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Halogen free product
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
