Home ProductsPower Points and SwitchesSaturn (inc. Saturn Horizon)push-button Switch LED

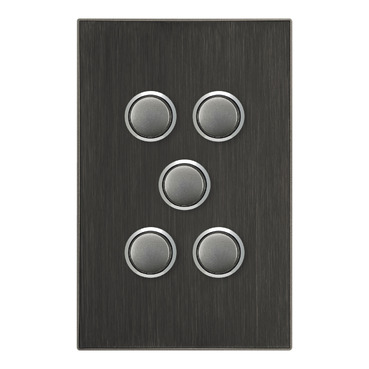

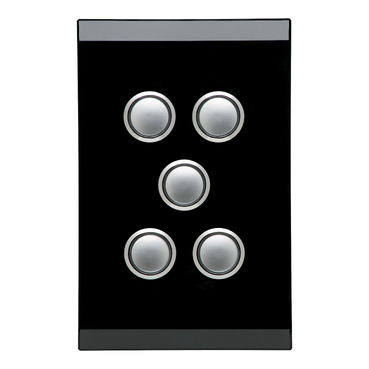

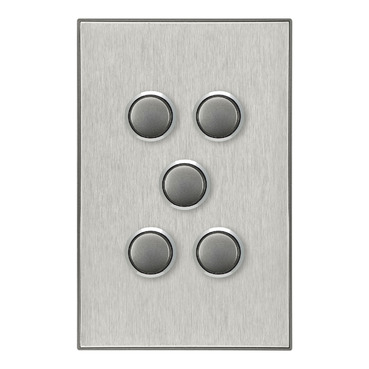

Saturn Series push-button Switch LED 5 Gang, 250V, 16AX/20A | Pure White

Item Number: 4065PBL-PW

Pure White 1 PCE 0
Espresso Black 1 PCE 0
Horizon Black 1 PCE 0
Horizon Silver 1 PCE 0
Ocean Mist 1 PCE 0

These Saturn pushbutton switches have ‘soft glow' LED light indication offering a subtle blue light that can be configured to glow when the switch is turned on or off. It can be permanently turned on as a switch locator for when you get caught in the dark.

Where To Buy

Datasheet

Download

Product Dimensions

Width75 mm

Height116 mm

Embedding depth31.6 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554680725	PW
10	CRT	9311554680732	PW
50	CAR	19311554680722	PW
1	PCE	9311554680763	EB
10	CRT	9311554680770	EB
50	CAR	19311554680760	EB
1	PCE	9311554744571	HB
10	CRT	9311554744588	HB
40	CAR	29311554744575	HB
1	PCE	9311554748722	HS
40	CAR	29311554748726	HS
1	PCE	9311554680749	OM
10	CRT	9311554680756	OM
50	CAR	19311554680746	OM

Specifications

Design

Range of product	Saturn Series 4000
Product or component type	push-button
Product brand	Clipsal

Physical

Device presentation	basic element with full cover plate
Actuator	push-button
Number of gangs	5 gangs
Local signalling	indicator light
Fixing mode	by screws
[ue] rated operational voltage	250 V AC
Inrush current	20 A
Height	116 mm
Depth	43.6 mm
Embedding depth	31.6 mm
Width	75 mm
Mounting position	horizontal/vertical
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2501001
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Material

Material	PVC (polyvinyl chloride)

Others

Legacy weee scope	In
	Outside of Europe
Warranty duration(in months) bmecat	18
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Weee label	N/A
Weee applicability	Finished product
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.0 cm
Package 1 width	8.5 cm
Package 1 length	12.0 cm
Package 1 weight	219.0 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	5 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.48329576
Carbon footprint of the manufacturing phase [a1 to a3]	1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.03503124
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.053159184
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	3.173200000000001
Carbon footprint of the use phase [b2, b3, b4, b6]	3 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.46992144
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	5.214607624000001
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Halogen-free status	Product contains halogen above thresholds
Pvc free	Yes
End of life manual availability	ENVEOLI2501001
Take-back	No
Warranty (in months)	18
