Saturn Series Push Button Mechanism Intermediate, 230/240V, 10AX

Saturn Series Push Button Mechanism Intermediate, 230/240V, 10AX

Item Number: 60PBI

Feel the difference of a push-button switch with this on/off mechanism for the Saturn Series range. The 250V, 10A push-button intermediate mechanism sits within the stylish Saturn 4000 series light switches, providing reliable, safe switching. This product does not have an LED indicator and is used fo multi-way switching.

Datasheet

Product Dimensions

Width icon

Width23.5 mm

Height icon

Height23.5 mm

Embedding depth icon

Embedding depth31.6 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Saturn Series

Product or component type

push-button

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Device presentation

basic element

Actuator

push-button

Local signalling

without light indicator

[ue] rated operational voltage

250 V AC

Inrush current

10 A

Height

23.5 mm

Depth

40 mm

Embedding depth

31.6 mm

Width

23.5 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1708008EN

Circularity profile

ENVEOLI1708008EN

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.0 cm

Package 1 width

4.6 cm

Package 1 length

3.1 cm

Package 1 weight

26.0 g
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Installation Instruction

  • Certificates (MSDS)

Frequently Asked Questions

hide show

Is there an intermediate switch mechanism for the Zen series?

Yes, there is an intermediate switch mechanism for Saturn Zen. The part number is 60PBI.

Some of the key features are:
  • No LED Indication
  • Intermediate Push-button
  • 10AX load
For further information please visit http://www.clipsal.com/Trade/Products/ProductDetail?catno=60PBI

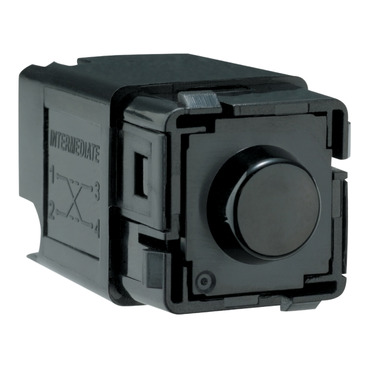

60PBI device image
