Specifications
Design
Range of product

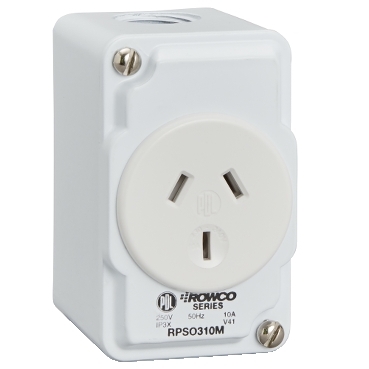

- Rowco Metal Protected Series
- PDL
Product brand
Clipsal
Physical
Control type
ON/OFF button
Number of gangs
1 gang
Pin number
3
Number of power socket outlets
1
Local signalling
without light indicator
[ue] rated operational voltage
250 V AC
[in] rated current
10 A
Ip degree of protection
IP30
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Eu rohs directive
Compliant
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
die cast aluminium
Others
Legacy weee scope
In
Weee label
N/A
Outside of Europe
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6.5 cm
Package 1 width
6.5 cm
Package 1 length
12.0 cm
Package 1 weight
368.0 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
