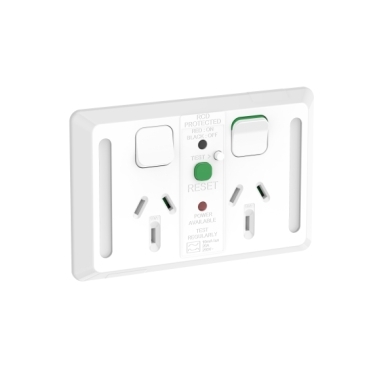

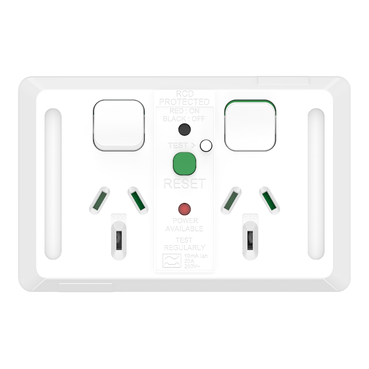

Pro Series Twin Power Point Horizontal Mount,10mA RCD 10A, 250V

Pro Series Twin Power Point Horizontal Mount,10mA RCD 10A, 250V | Extra Vivid White

Item Number: P3025RCD10-XW

Protection is at the power outlet with the Pro Series Twin Horizontal Switched Power Point with RCD. The 10A, 250V outlet has a built in RCD which cuts power to the outlet before any damage can be done. The 10mA rating is suitable for use in medical areas and areas where young children are present such as schools and day cares.

Datasheet

Product Dimensions

Width icon

Width116 mm

Height icon

Height78 mm

Depth icon

Depth41 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Pro Series

Product or component type

switched socket

Colour tint

white (XW)

Surface finish

glossy

Surface treatment

untreated

Physical

Device presentation

complete product

Outlet poles configuration

1P + E with shutter

Outlet standard

Australian

Device mounting

flush

Number of power socket outlets

2

Number of rocker

2

Range compatibility

Pro Series

Outlet standard description

with earthing contact

Ground lug position

straight 180° position

Fixing mode

by screws

Installation direction

horizontal

Type of packing

polybag

Quantity per set

set of 10

Sale per indivisible quantity

1

Rated current

10 A at 250 V AC 50 Hz

Connections - terminals

3 screw terminals

Screwdriver shape

square drive no 1 (SQ1)|Philips No 2

Clamping connection capacity

1 x 2.5...4 x 2.5 mm² for rigid or stranded cable(s)|3 x 4 mm² for rigid or stranded cable(s)

Wire stripping length

16 mm

Height

78 mm

Width

116 mm

Depth

41 mm

Net weight

0.094 kg

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

Standards

AS/NZ 3112

Product certifications

RCM

Ik degree of protection

IK08

Material

Material

PC (polycarbonate): fixing frame|PP (polypropylene)|POM (polyoxymethylene): shutter|PC (polycarbonate): window|ABS (acrylonitrile butadiene-styrene): infill piece|ABS (acrylonitrile butadiene-styrene): skin

Others

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Earth-leakage protection class

type I

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.5 cm

Package 1 width

7.2 cm

Package 1 length

11.6 cm

Package 1 weight

160.53 g

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
