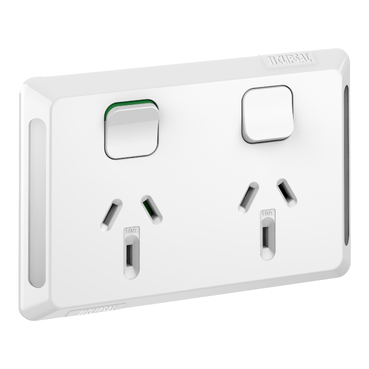

Pro Series Twin Power Point Double Pole, Horizontal Mount, 250V, 10A | Extra White
Item Number: P3025D-XW
For your double pole switching needs, the Pro Series Horizontal Twin Switched Power Point Double Pole outlet is the perfect solution. The 10A, 250V switched power point features green indicator strips, as well as clear windows for easy identification of circuits.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | switched socket |
| Surface finish | glossy |
| Surface treatment | untreated |
Physical
| Device presentation | complete product |
|---|---|
| Socket number | 2 |
| Connections - terminals | screw terminals |
| Installation direction | horizontal |
| Device mounting | flush |
| Number of rocker | 2 |
| Rated current | 10 A |
| [ue] rated operational voltage | 230/240 V |
| Fixing mode | by screws |
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Net weight | 94 g |
| Ambient air temperature for operation | 0...45 °C |
| Height | 78 mm |
| Width | 116 mm |
| Depth | 27 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2309004EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
| Quantity per set | set of 10 |
