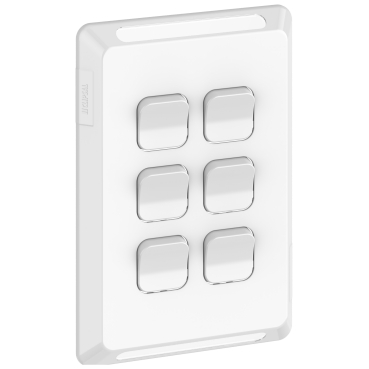

Pro Series Switch Plate Skin 6 Gang, Horizontal/Vertical Mount, Clip-On | Extra White
Item Number: P3046C-XW
Aesthetically pleasing with fresh, clean lines, the 6 Gang Pro Series Skin can be fitted either vertically or horizontally. Once secured in place on the Pro Series Grid it cannot be removed without the Skin Removal Tool or a screwdriver, protecting your investment.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | cover frame |
| Product destination | switch |
| Surface finish | glossy |
Physical
| Type of packing | polybag |
|---|---|
| Range compatibility | Pro Series switch |
| Number of rocker | 6 |
| Installation direction | vertical |
| Fixing mode | clip-on |
| Height | 116 mm |
| Width | 78 mm |
| Depth | 9 mm |
| Net weight | 0.018 kg |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2309004_V1-EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
