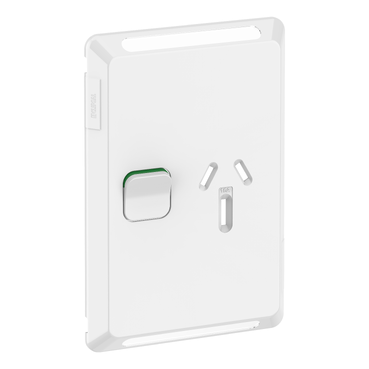

Pro Series Single Power Point Skin Vertical Mount, 250V, 15AClip-On | Extra White
Item Number: P3015V15C-XW
For vertical applications, the Pro Series Single Switched Power Point Skin gives you the perfect finish. Rated 15A, 250V, the Skin is suitable for use with heavier duty appliances. The clear windows let you see the identification labels, and the green indicator strip shows you when the switch is on.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | cover frame |
| Colour tint | white (XW) |
| Product destination | switched socket |
| Surface finish | glossy |
Physical
| Type of packing | polybag |
|---|---|
| Range compatibility | Pro Series switched socket |
| Number of rocker | 1 |
| Number of power socket outlets | 1 |
| Installation direction | vertical |
| Fixing mode | clip-on |
| Height | 116 mm |
| Width | 78 mm |
| Depth | 9 mm |
| Net weight | 0.018 kg |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2309004EN |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
