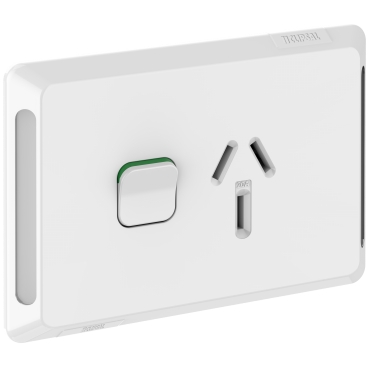

Pro Series Single Power Point Horizontal Mount, 250V, 20A | Extra White
Item Number: P3015-20-XW
Keep facility managers happy by using the robust Pro Series single switched Power Point. The outlet is rated 20A, 250V and includes features such as circuit identification windows, clear amperage markings and green "on" indicator.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | switched socket |
| Surface finish | glossy |
| Surface treatment | untreated |
Physical
| Device presentation | complete product |
|---|---|
| Socket number | 1 |
| Connections - terminals | screw terminals |
| Installation direction | horizontal |
| Device mounting | flush |
| Number of rocker | 1 |
| Rated current | 20 A |
| [ue] rated operational voltage | 230/240 V |
| Fixing mode | by screws |
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Net weight | 94 g |
| Ambient air temperature for operation | 0...45 °C |
| Height | 78 mm |
| Width | 116 mm |
| Depth | 38 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2309004EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
| Quantity per set | set of 10 |
