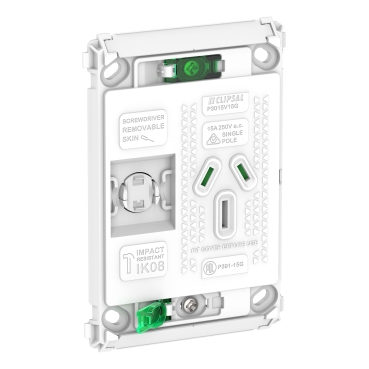

Pro Series Single Power Point Grid Vertical Mount, 250V, 15A
Item Number: P3015V15G
Close
The Pro Series Vertical Switched Power Point Grid has been designed specifically for use in commercial buildings. The grid is rated at 15A, 250V and features safety screw caps to stop access to the wiring components once the switch has been properly installed.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | switched socket |
| Colour tint | white |
| Surface treatment | untreated |
Physical
| Device presentation | mechanism with fixing frame |
|---|---|
| Outlet poles configuration | 2P + E with shutter |
| Outlet standard | Australian |
| Device mounting | flush |
| Number of power socket outlets | 1 |
| Number of rocker | 1 |
| Range compatibility | Pro Series |
| Outlet standard description | with earthing contact |
| Ground lug position | straight 180° position |
| Fixing mode | by screws |
| Installation direction | vertical |
| Type of packing | polybag |
| Quantity per set | set of 10 |
| Sale per indivisible quantity | 1 |
| Rated current | 15 A at 250 V AC 50 Hz |

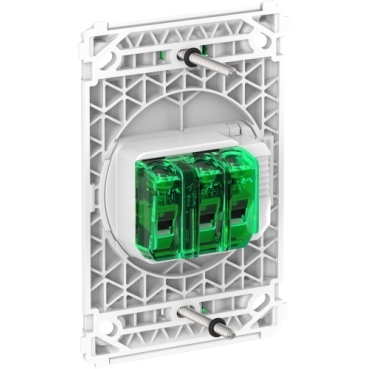

| Connections - terminals | 3 screw terminals |
| Screwdriver shape |
|
| Clamping connection capacity |
|
| Wire stripping length | 16 mm |
| Height | 112 mm |
| Width | 72 mm |
| Depth | 30 mm |
| Net weight | 0.078 kg |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Standards | AS/NZ 3112 |
| Product certifications | RCM |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2309004EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
