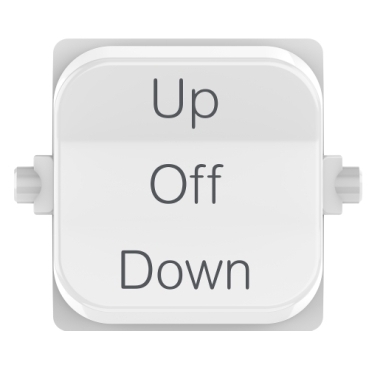

Pro Series Rocker Toggle 3-pos UP - OFF - DOWN | Extra White
Item Number: P49TUOD-XW
For ease of use and clarity, the Pro Series Three Position Rocker Toggle has Up, Off, and Down positions clearly marked. The Rocker Toggle is suitable to control fan speeds, heating, blinds and more. The dolly rocker clips into the Pro Series Skin for a seamless gloss look.
Features
- Clip-in mounted method
- Rocker actuator
- Pack Size: Set of 50
- Add the grid plate to skin and interface of your choice
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | rocker |
| Product destination | switch |
Physical
| Quantity per set | set of 50 |
|---|---|
| Device mounting | flush |
| Switch function | 3 positions |
| Marking | UP-OFF-DOWN |
| Height | 23 mm |
| Width | 23 mm |
| Depth | 2 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN_V2 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material | ABS (acrylonitrile butadiene-styrene) |
|---|
Documents & downloads
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Declaration of Conformity (Sustainability)
P49TUOD-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P49TUOD-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P49TUOD-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P49TUOD-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P49TUOD-XW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P49TUOD-XW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Pro Series range
The Pro Series range is practical and functional as it is manufactured with quality materials to withstand the impact and everyday knocks of public places. Its clean and fresh edges work to deflect impacts and dirt.
Switches offer standard and electronic modules. Sockets are available in several variants, and horizontal and vertical orientations.
Includes permanent circuit identification, integrated windows in the skins and secured skins that are removable with a tool.
Electronic functions include Bluetooth connectivity, connection to the Wiser Room app, USB options, timers, PIR motion sensors and C-Bus modules, makes building management simple.
