Pro Series LED Module 250V, with Rocker | Extra White
Item Number: P40MLEDBW-XW

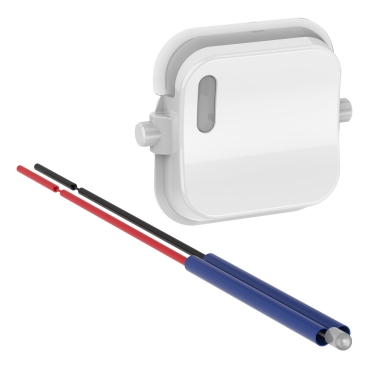

Add a bright white glow to the switch with the Pro Series LED 250V Bright White LED module and rocker. The rocker has a clear window through which the LED can be seen. The rocker fits into the Pro Series Skins.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | rocker |
| Colour tint | white |
| Product destination | switch |
| Surface finish | matt |
| Surface treatment | untreated |
Physical
| Device presentation | basic element |
|---|---|
| Quantity per set | 10 |
| Device mounting | flush |
| Fixing mode | clip-on |
| Height | 23 mm |
| Width | 23 mm |
| Depth | 32 mm |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2108010_V1 |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
Product Brochures
-
Technical Data Catalogues
-
Environmental Disclosure
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
Schneider Electric, 40M and 381M switch mechanism, Certificate, RCM, Global Mark Pty LTD
VERSION
2.1
DATE
19 May 2026
REVISION
2.1
Iconic 40M switch series, Certificate, RCM, TUV Rheinland Aust. Pty. Ltd.
VERSION
1.1
DATE
23 Feb 2024
REVISION
1.1
RCM Certificate of Approval (Conformity)
VERSION
9.0
DATE
23 Feb 2024
REVISION
9.0
P40MLEDBW-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P40MLEDBW-BK EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P40MLEDBW-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P40MLEDBW-BK REACh Regulation
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P40MLEDBW-XW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
P40MLEDBW-XW EU RoHS Directive
VERSION
1.0
DATE
01 Jan 1900
REVISION
1.0
Frequently Asked Questions
Will LED indicators be visible with XB and XW in Iconic?
Hide ShowThe rockers in XB and XW for Iconic have no translucent edge so this will cause the LED indicator to no be visible.
You can consider using the P40MLEDBW which has a window in the rocker, however these are from the Pro Series range and have a different finish and will not exactly match the XB or XW Cover/Skin in Iconic
