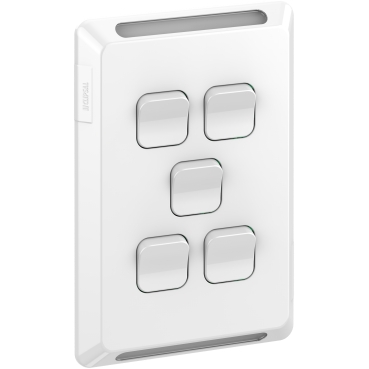

Pro Series Gridplate and Skin 5 Gang, Vertical/Horizontal Mount | Extra White
Item Number: P3045VH-XW
Close
The Pro Series 5 Gang Switch Grid and Skin gives you the flexibility to choose the 40 Mech modules you want. The grid and skin have been designed for use in commercial buildings and can be installed either vertically or horizontally. The skin has circuit identification windows and a gloss, seamless finish.
Specifications
Design
| Range | Pro Series |
|---|---|
| Product or component type | cover frame |
| Colour tint | white (XW) |
| Product destination | switch |
| Surface finish | glossy |
Physical
| Range compatibility | Pro Series switch |
|---|---|
| Device mounting | flush |
| Number of rocker | 5 |
| Provided equipment |
|
| Installation direction | vertical |
| Fixing mode | clip-on |
| Height | 116 mm |
| Width | 78 mm |
| Depth | 9 mm |
| Ambient air temperature for storage | 0...60 °C |
| Ambient air temperature for operation | 0...45 °C |
| Relative humidity | 10...95 % |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1607003EN |
| Reach regulation | Reference contains Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Material
| Material |
|
|---|
